This Airstream has SOLD. If you are interested in commissioning a similar build, you can reach us at [email protected]

Thank you for your interest!

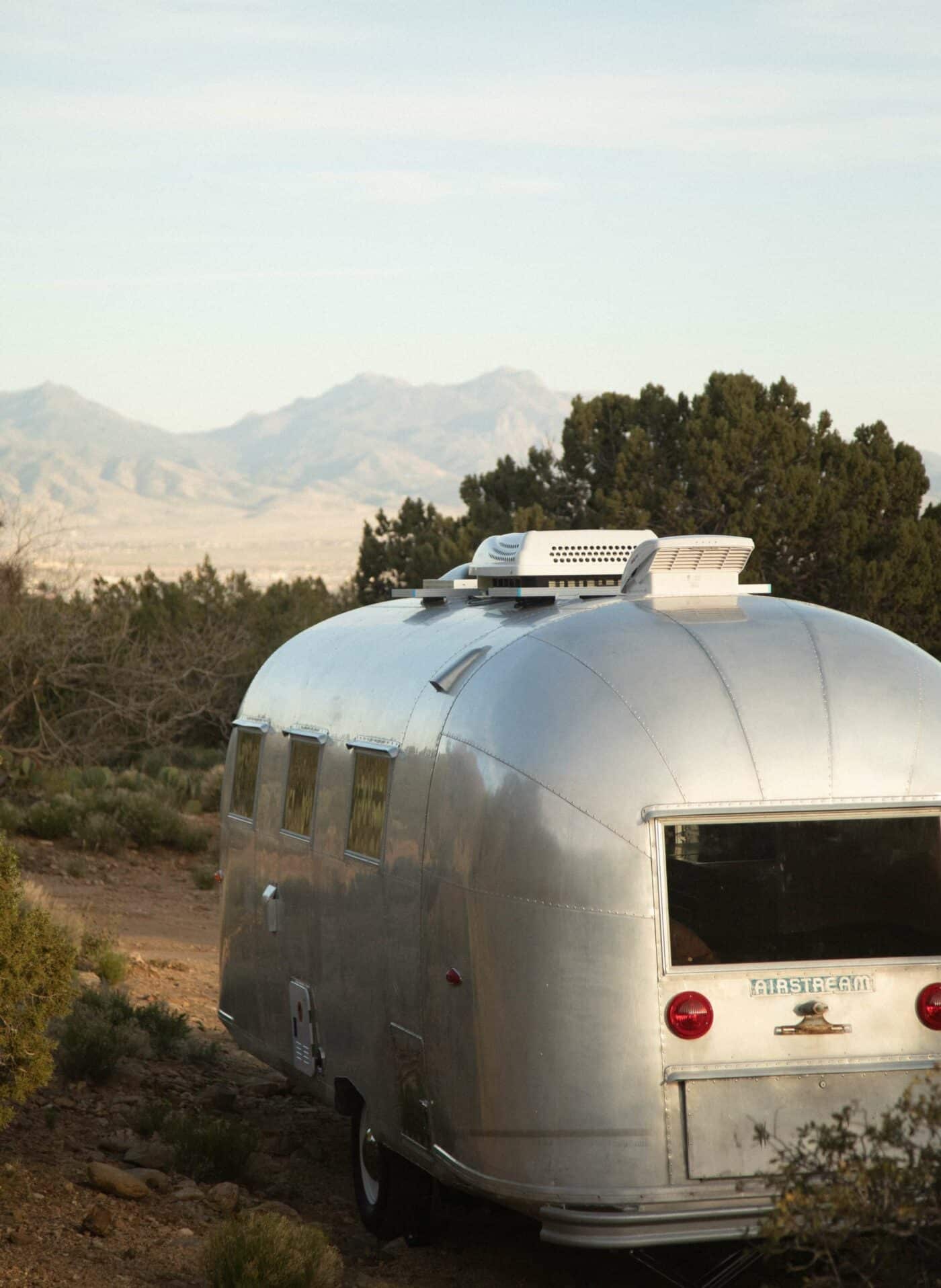

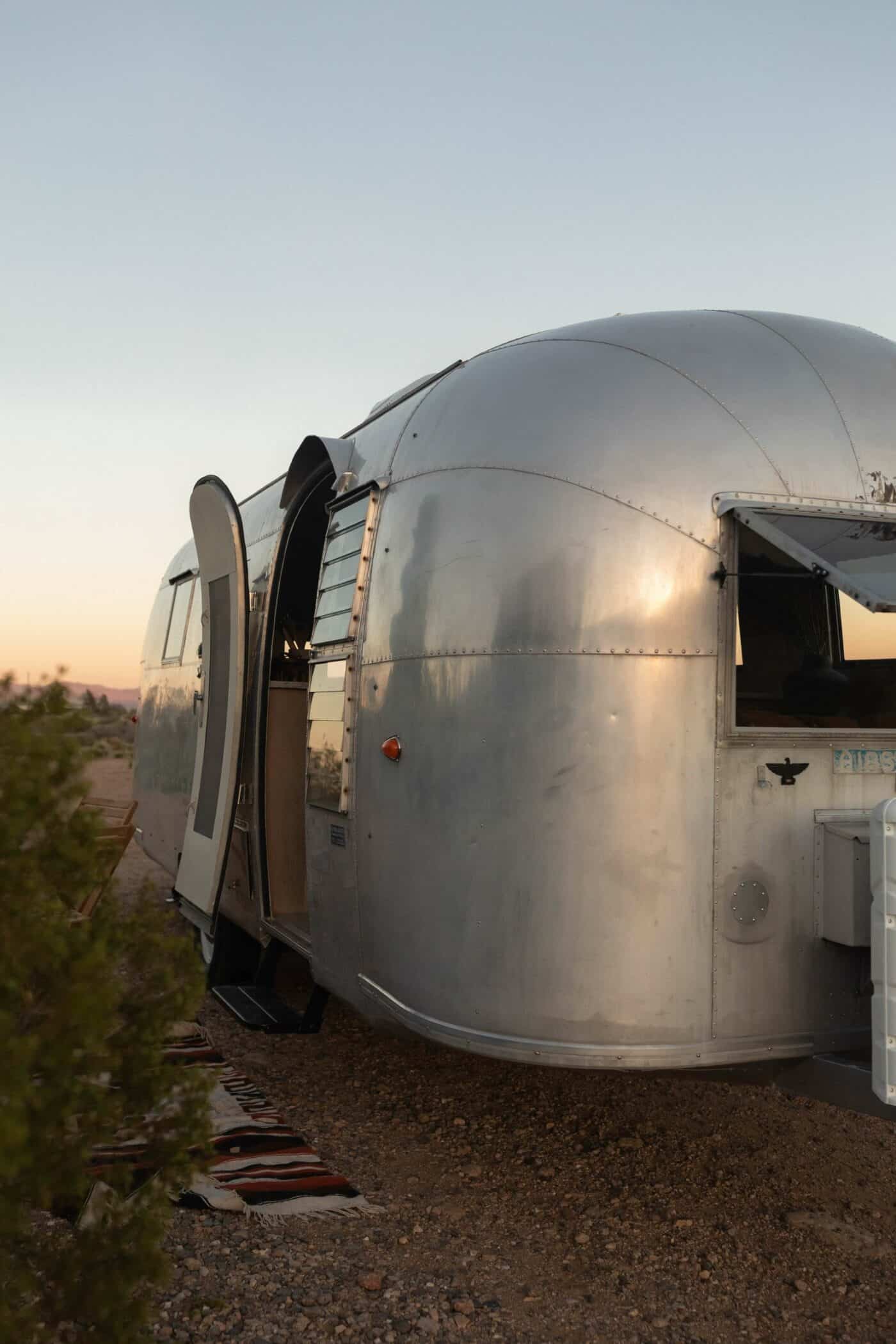

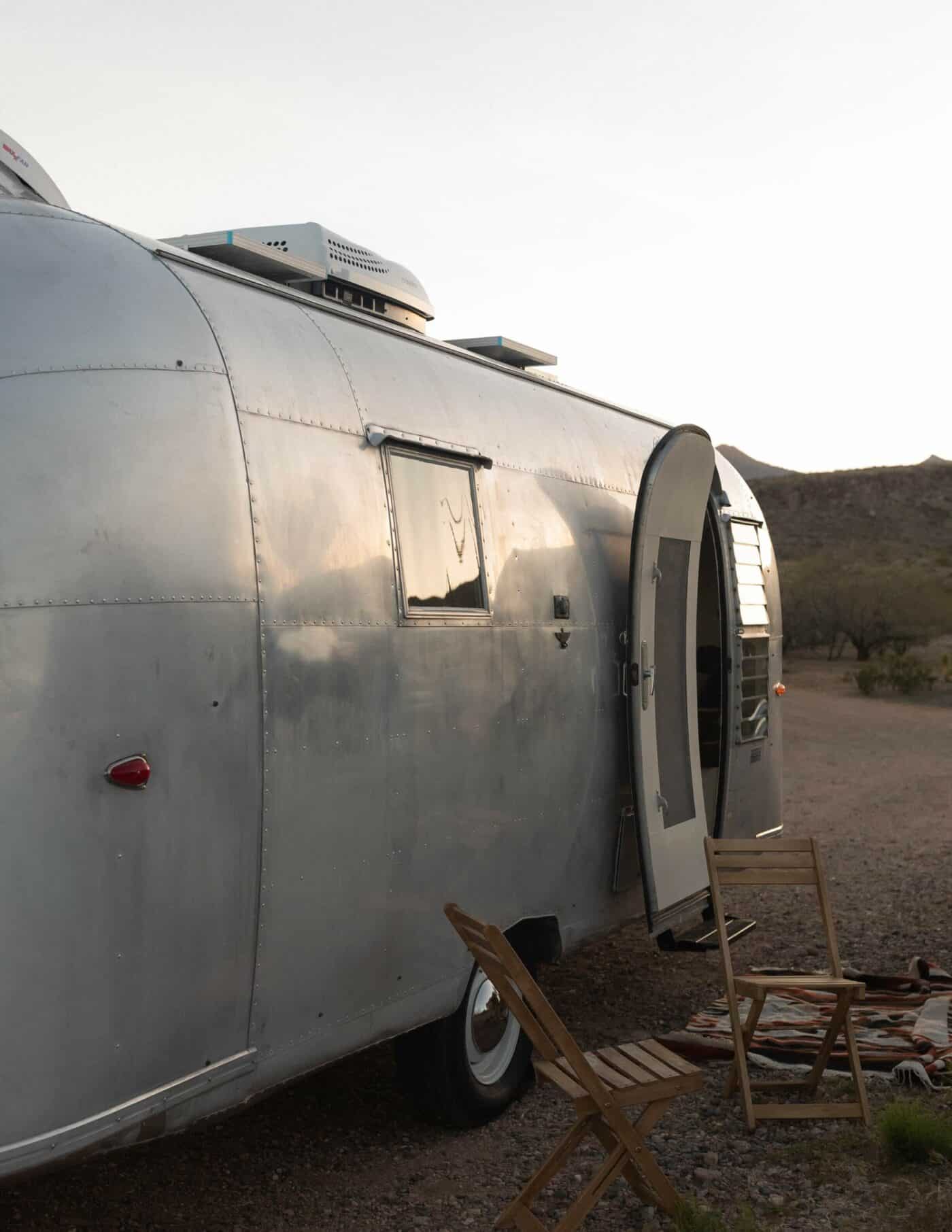

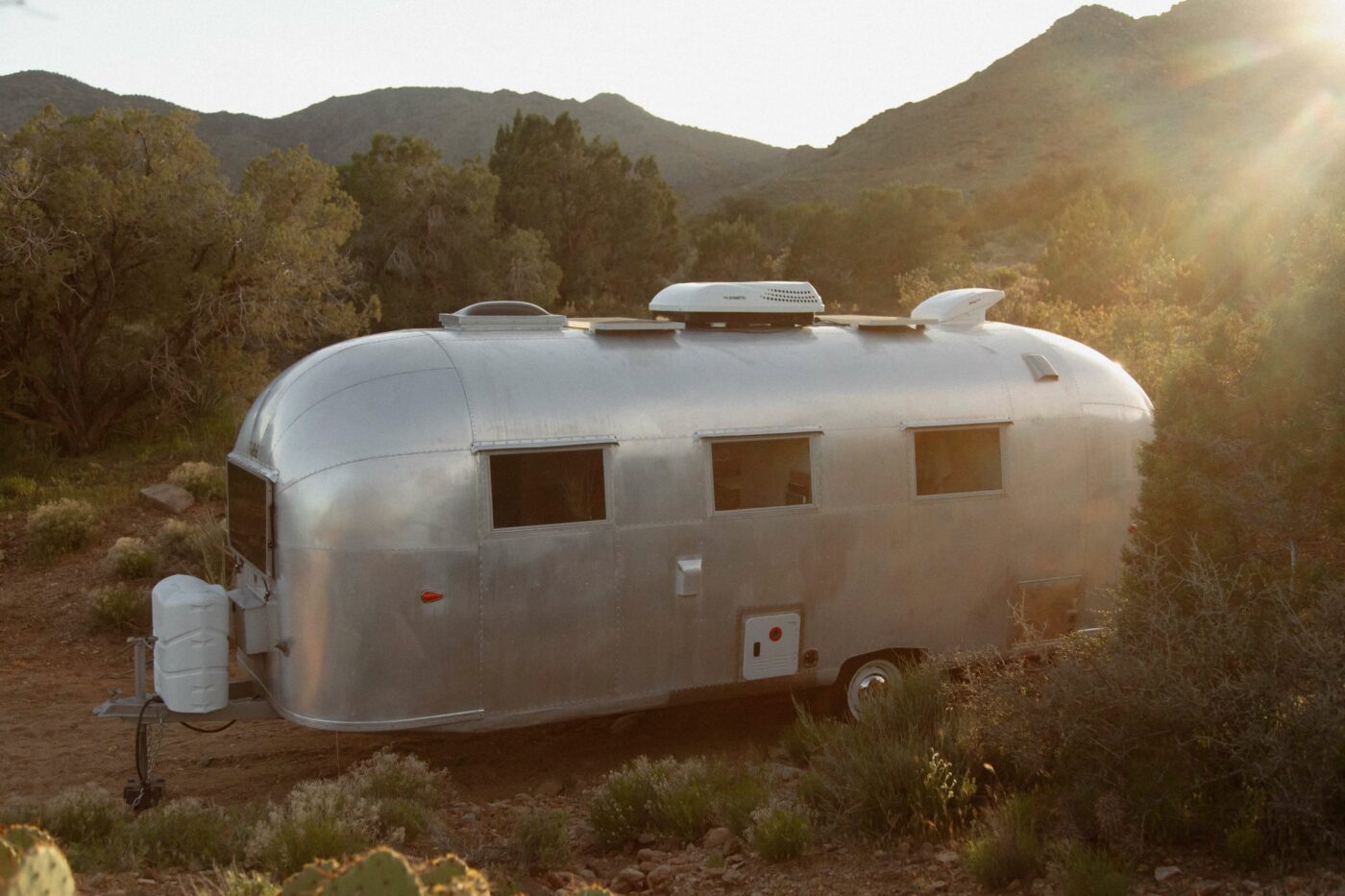

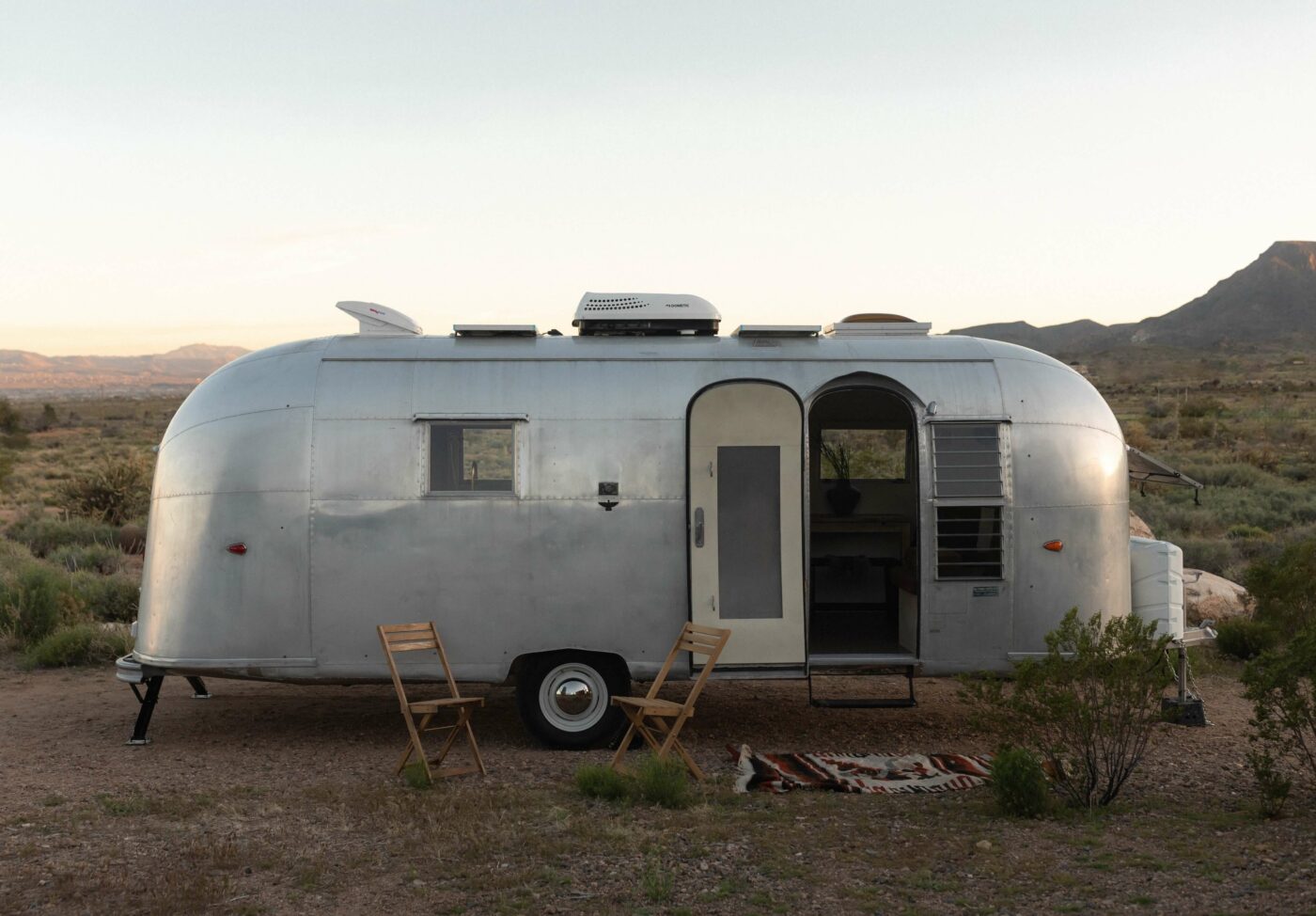

Meet our 1960 Airstream Tradewind “Sonora”

The absolute best of the best! A full shell-off resto-mod featuring the latest and greatest components, appliances, and Airstream construction engineering. Fully equipped for on-and-off grid stay, using smart technology and intuitive design to achieve maximum simplicity and ease of use. Perfect for traveling the country and/or residential use… Vintage Airstreams are the most popular RV on AirBnB, more popular than Tiny Homes. We can arrange delivery to most contiguous US locations at no extra cost!*

A timeless and luxurious old-world style interior, ready to reflect the tastes of its new owner!

– Queen sized bed, full bathroom including shower, kitchen with premium appliances & solid white oak faced cabinetry, table with bench, full couch that converts to bed, lots of storage throughout
– 30Amp service
– 200ah Renogy Smart Lithium Battery
– 3000w Intelligent Inverter Charger
– Closed cell spray foam insulation
– 33 gallons fresh water, 33 gallons grey water, 10 gallons black water, 60lbs lp gas
– 200w solar with receptacles to easily add more
– New Dexter/UFP adjustable torsion axle
– New tires, including full sized spare & changing kit
– trailer weighs approx. 4k lbs dry, 450lbs tongue weight
– and loads more (full spec list at end of listing)!
Full walkthrough video: https://youtu.be/4HlvC4MyBuc?si=TSVF_1C2hzbZd0ch

Thoughtfully built for the long-term with maintenance considered… utilizing sensible construction practices and accessible—readily available off-the-shelf parts.

Our safety first approach starts at the frame, carefully refurbished with the next 63 years in mind. With new adjustable torsion axles, hubs and brakes, restored original wheels, new tires including a new spare, new safety chains, and fully equipped with LP gas, Carbon Monoxide, and smoke detectors along with strategically placed fire extinguishers, we truly put owner’s safety at the forefront, even including a new sway bar kit to ensure a smooth ride as it’s towed away.

Our “Better than OEM” approach means “Sonora” is equipped with features such as closed-cell spray foam insulation with an industry leading R-Value of 7 per inch (approximately 10-14 throughout this airstream). Making for a quiet, comfortable stay in any environment, with the added benefits of structural reinforcement, water-proofing, and leaving no place for icky to hang out. Before the spray foam was applied, all of the seams and rivets were liberally sealed from the inside. New tempered glass windows throughout for maximum strength down the road and a flawless viewing experience wherever you stay, complimented with insulating blinds. Even our subfloor insulation is superior, with R-10 below achieved with a 2 inch Foamular NGX system.

Speaking of subfloor, ours is carefully protected with multiple coats of polyurethane with emphasis on the edges for long-term water proofing and durability, secured firmly to the frame with galvanized carriage bolts. For flooring we chose Forbo Marmoleum sheet, for a seamless, luxurious & natural feel with easy maintenance.

Let’s talk electrical with all new wiring from the tow plug to the outlets. We designed this airstream around a “smart and easy” mindset. It starts with a 200ah smart lithium battery by Renogy paired with a 3000w Sungoldpower pure sine wave intelligent inverter charger to take care of your needs off grid. Want more? Easily add additional battery storage with a convenient amount of space in the storage compartment. But you shouldn’t need it under most circumstances thanks to your supplied 200 watts of Renogy solar which are easily added too with available receptacles, and a Renogy solar charge controller and battery monitor nicely work alongside the Sungoldpower monitor. Like monitoring? Pair with your Airstream via the Renogy app on your phone via Bluetooth for even more! Plug into shore power or a generator and the system instantly switches over, no need for user input… Just plug and play baby!

Sonora features multiple layers of protection from surges or faulty power sources starting at the Sungoldpower built in surge protection following an inline fuse. This power goes to the AC breaker & fuse panel before entering the trailer.

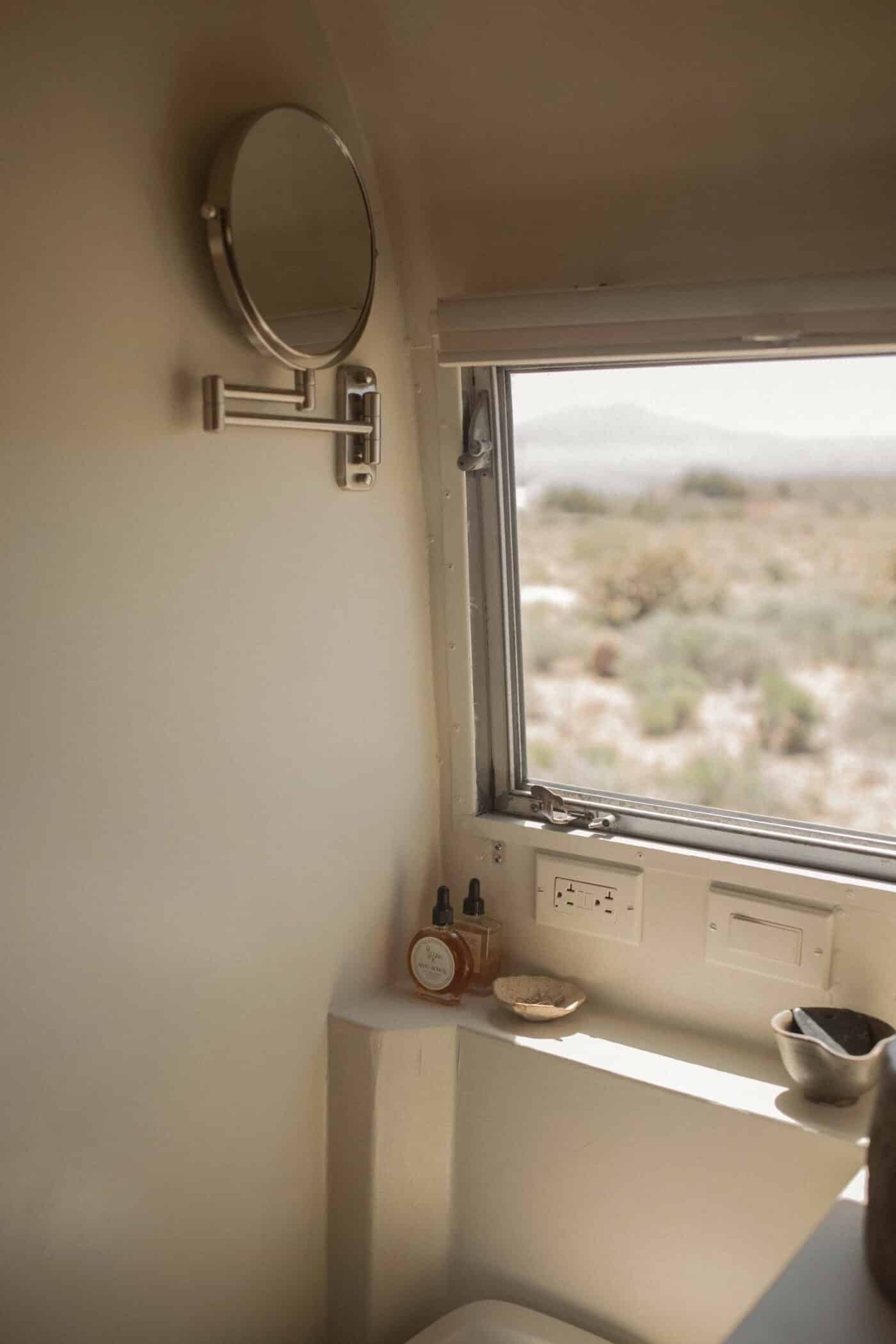

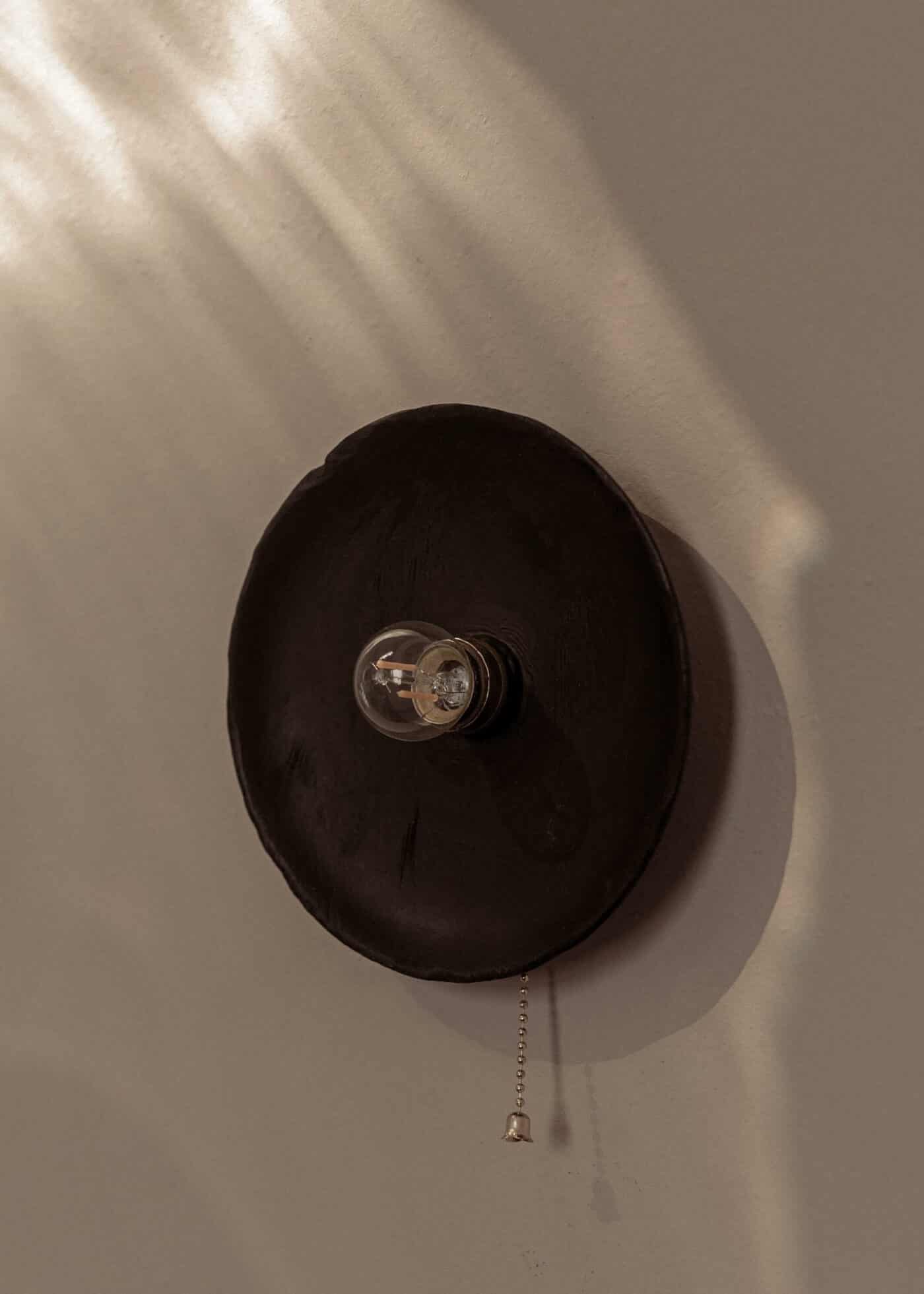

LED lighting used throughout the interior and exterior, with new tail lights, running lights, and porch light installed. A full Alpine sound system tastefully sets the mood, with Bluetooth for your convenience. GFCI outlets protect the bathroom & kitchen outlets, and there are two 12v DC outlets for your added convenience.

A 15k BTU Dometic Duo-Therm Penguin II brings you powerful climate control, with the heat-pump option giving you freedom to choose between heat by electricity or LP gas from your quiet, efficient 25k btu Suburban furnace. Fully operable windows with a screen door and open-able Maxim skylight allow the breeze, and the remote controlled MaxxAir Deluxe fan gives ventilation a plethora of options.

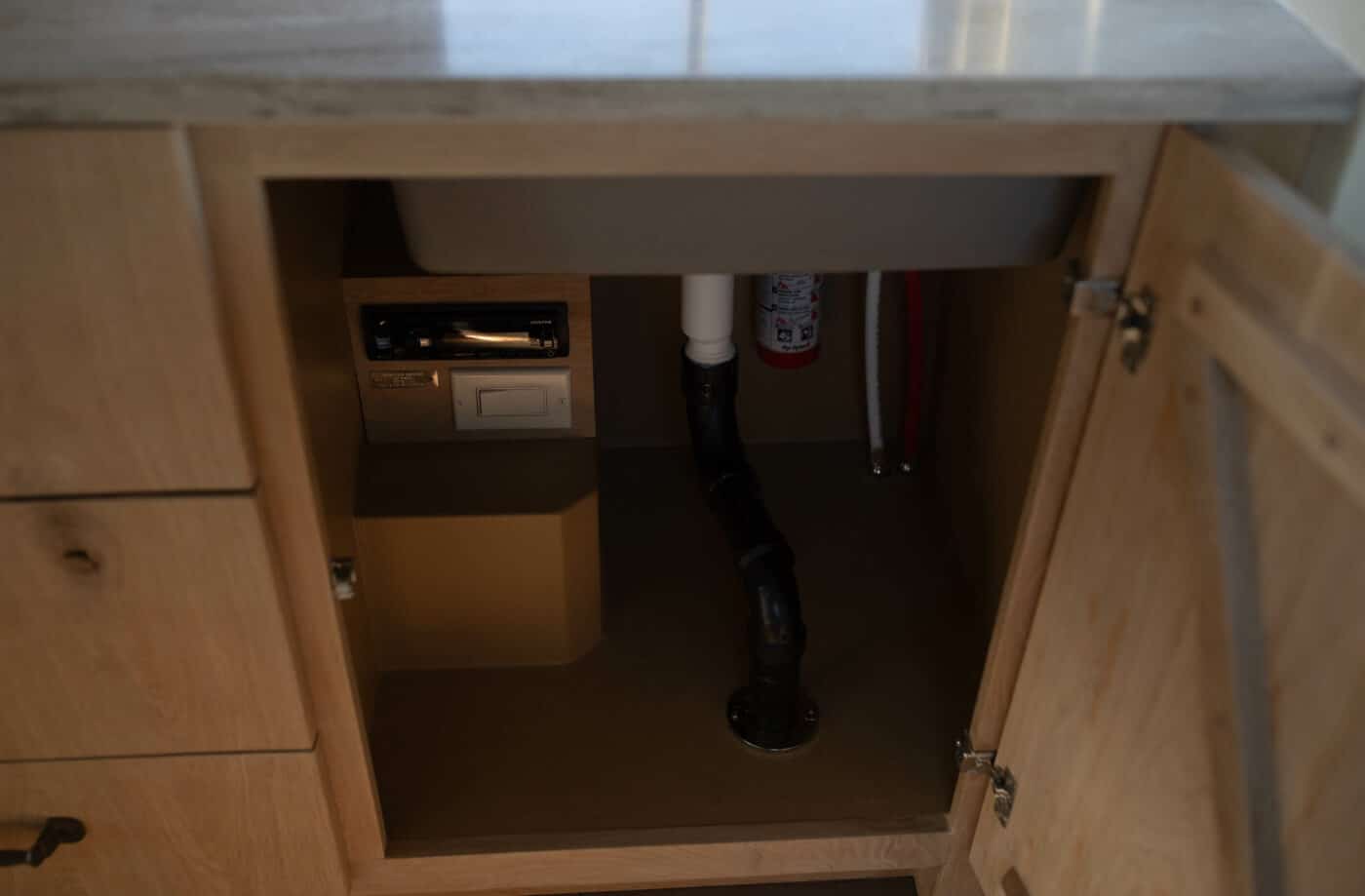

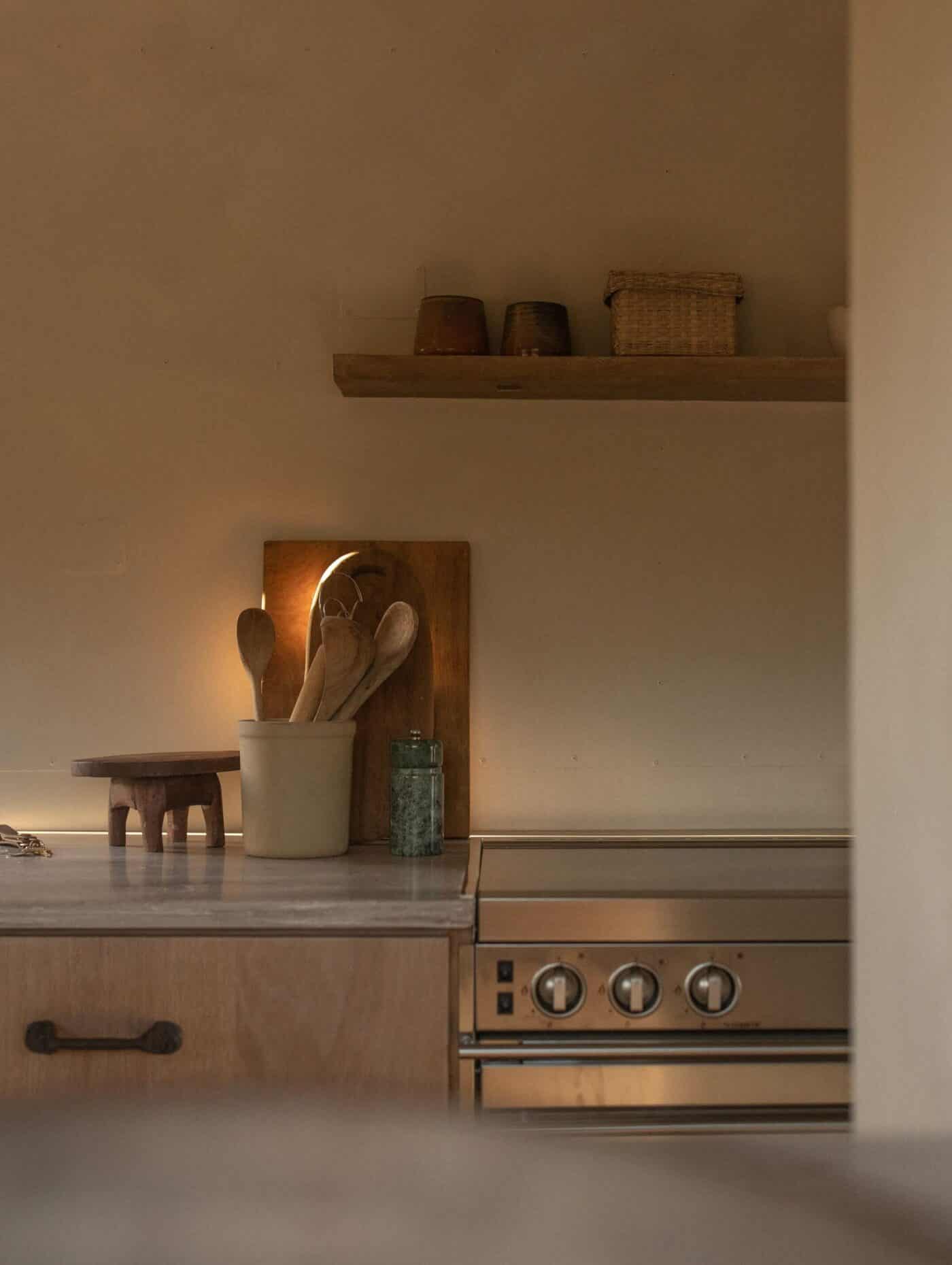

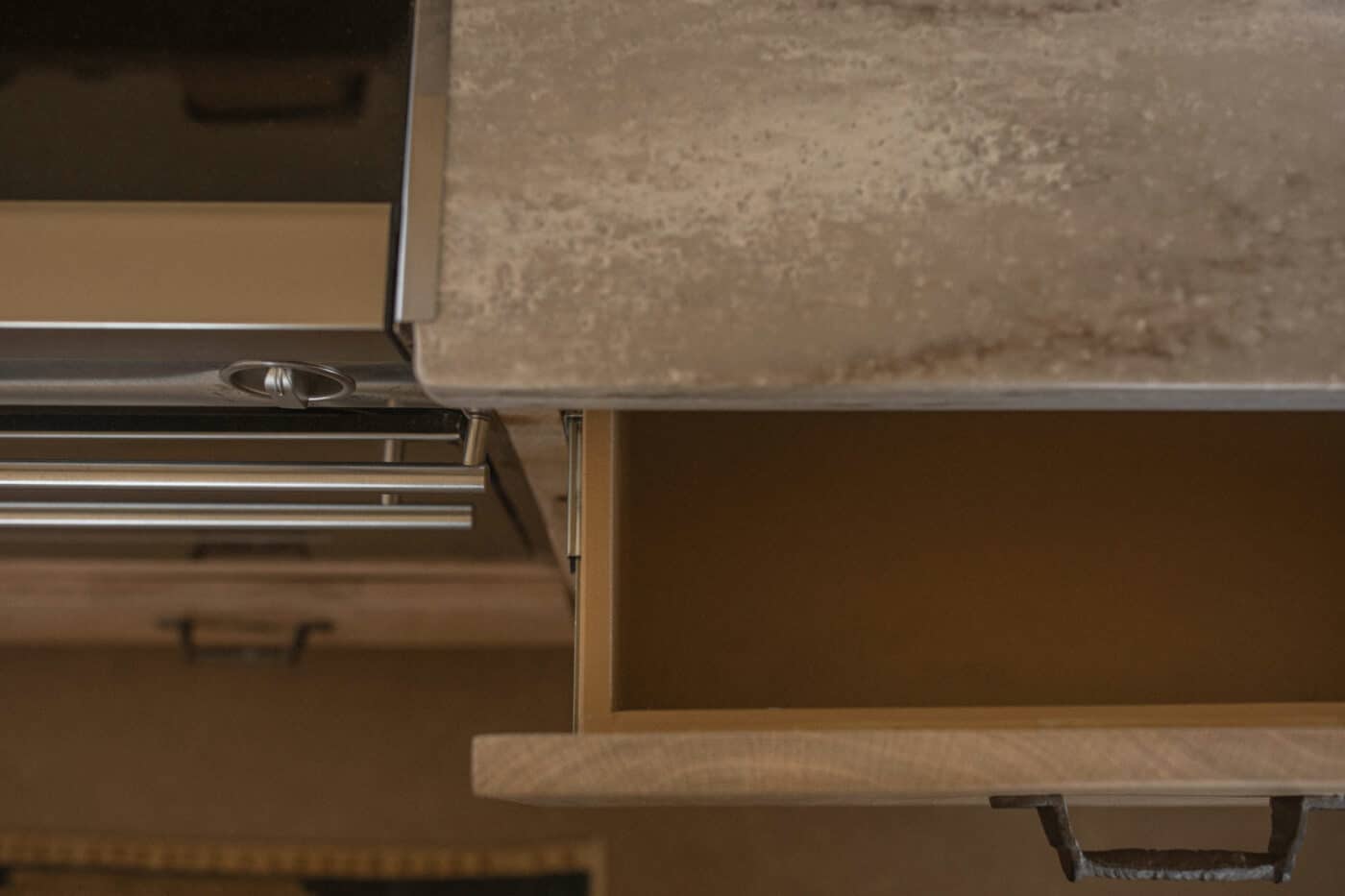

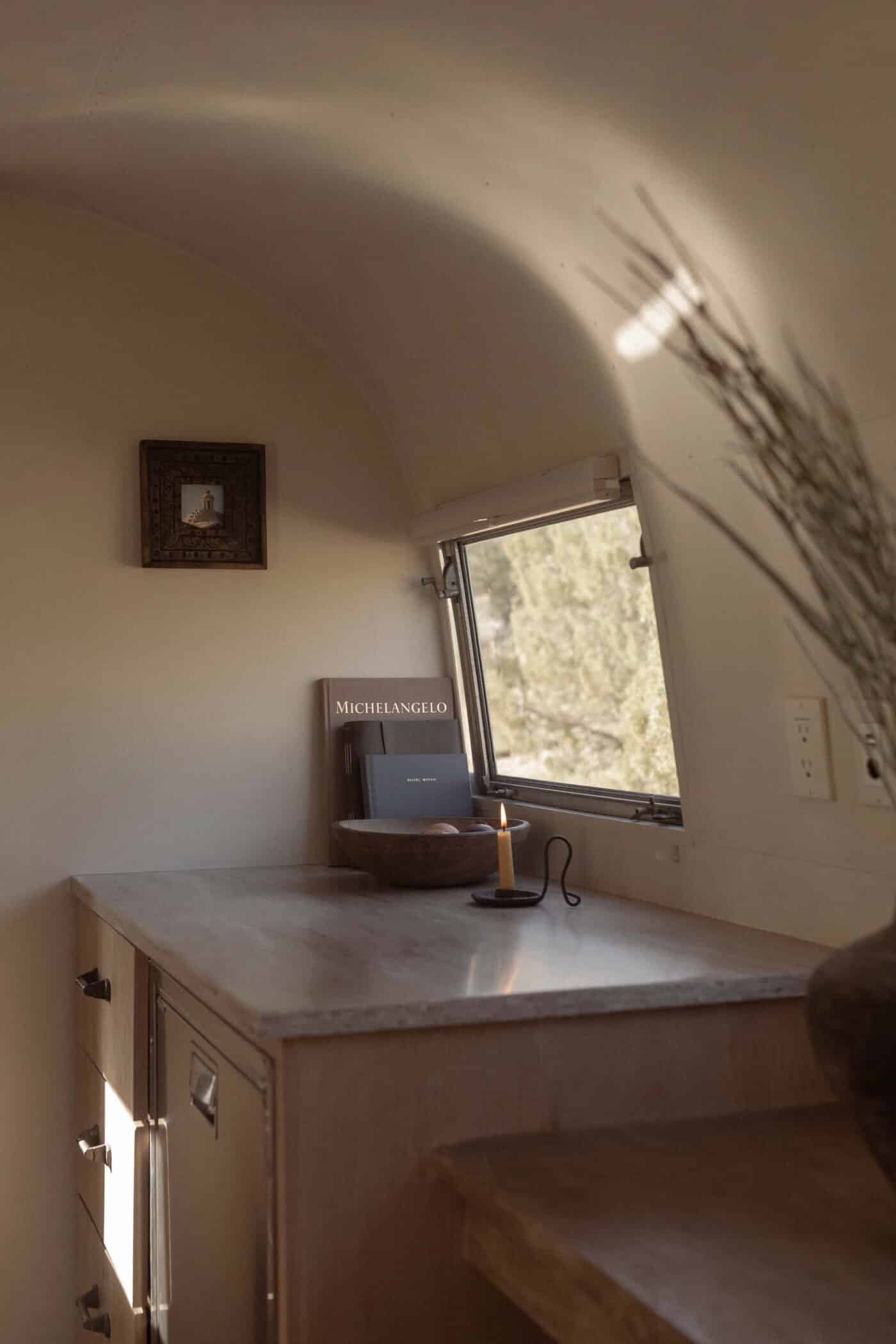

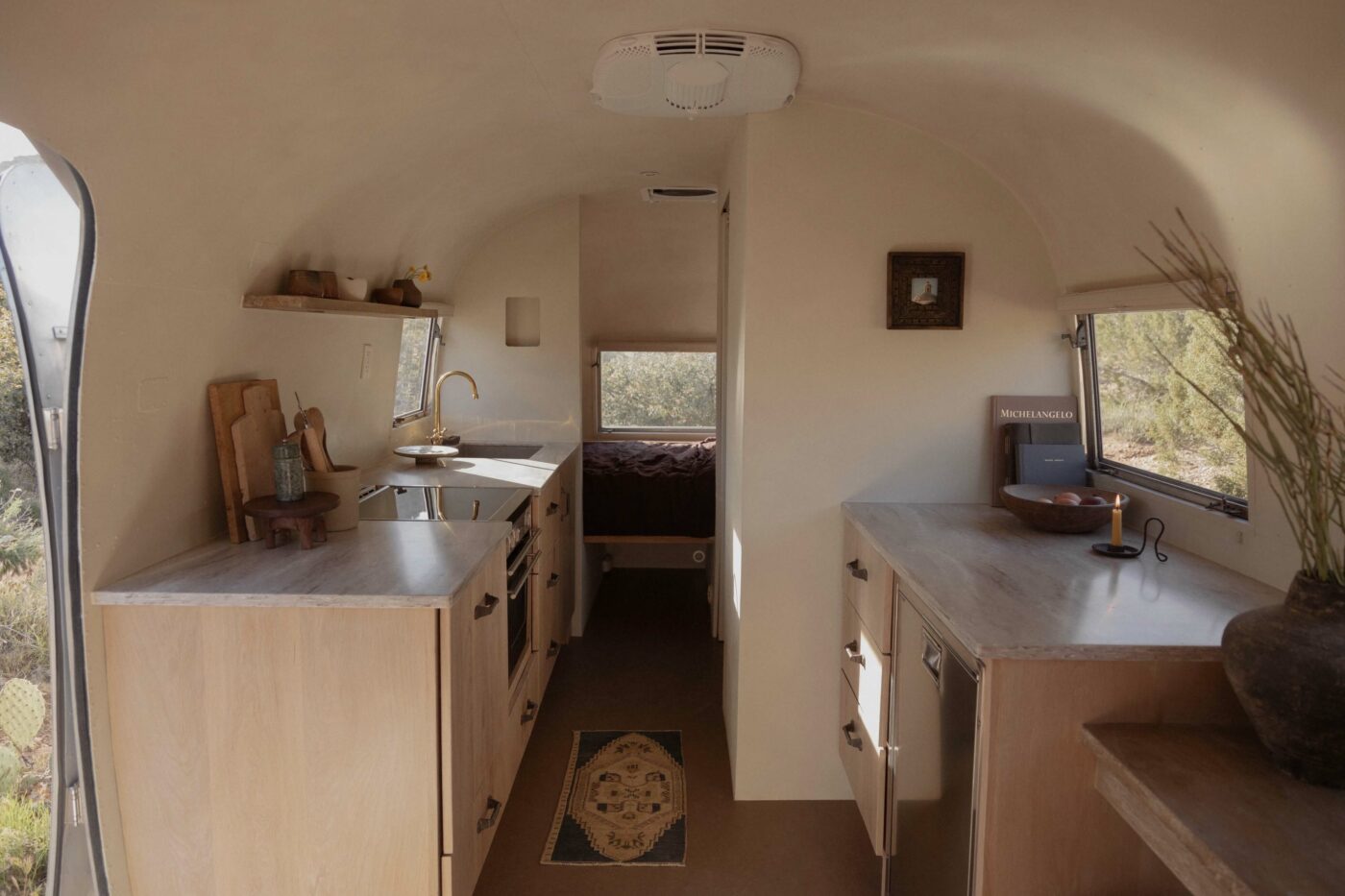

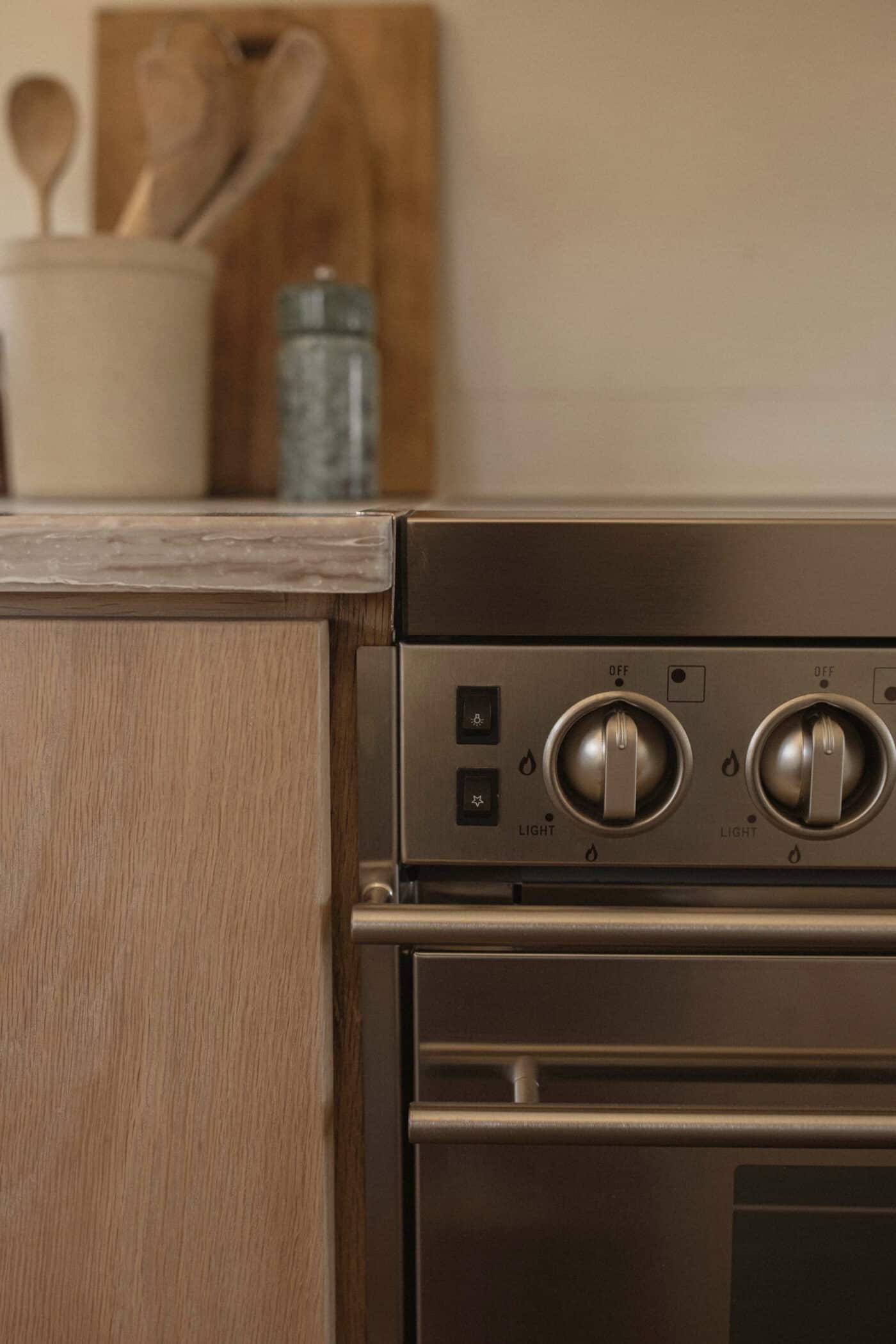

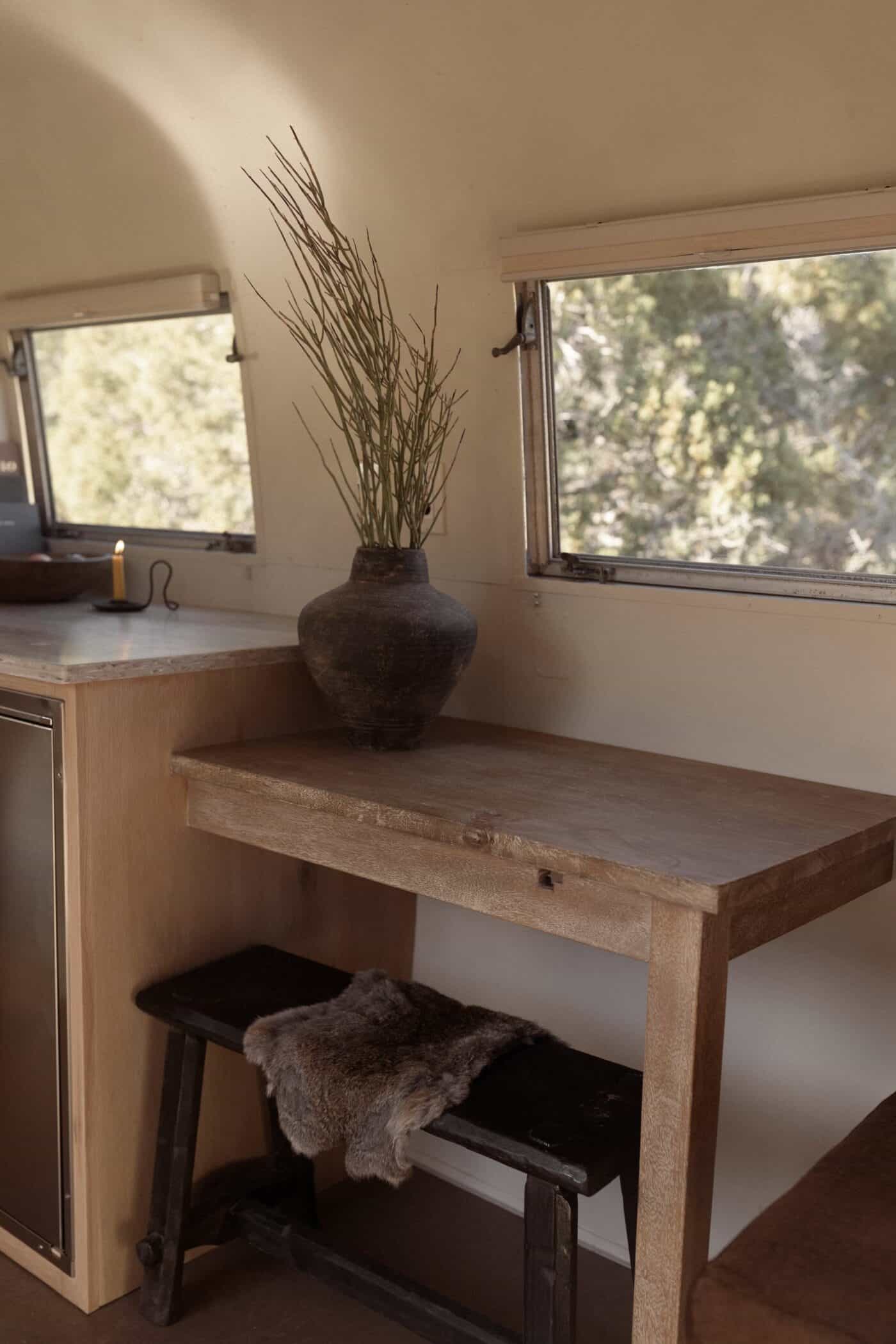

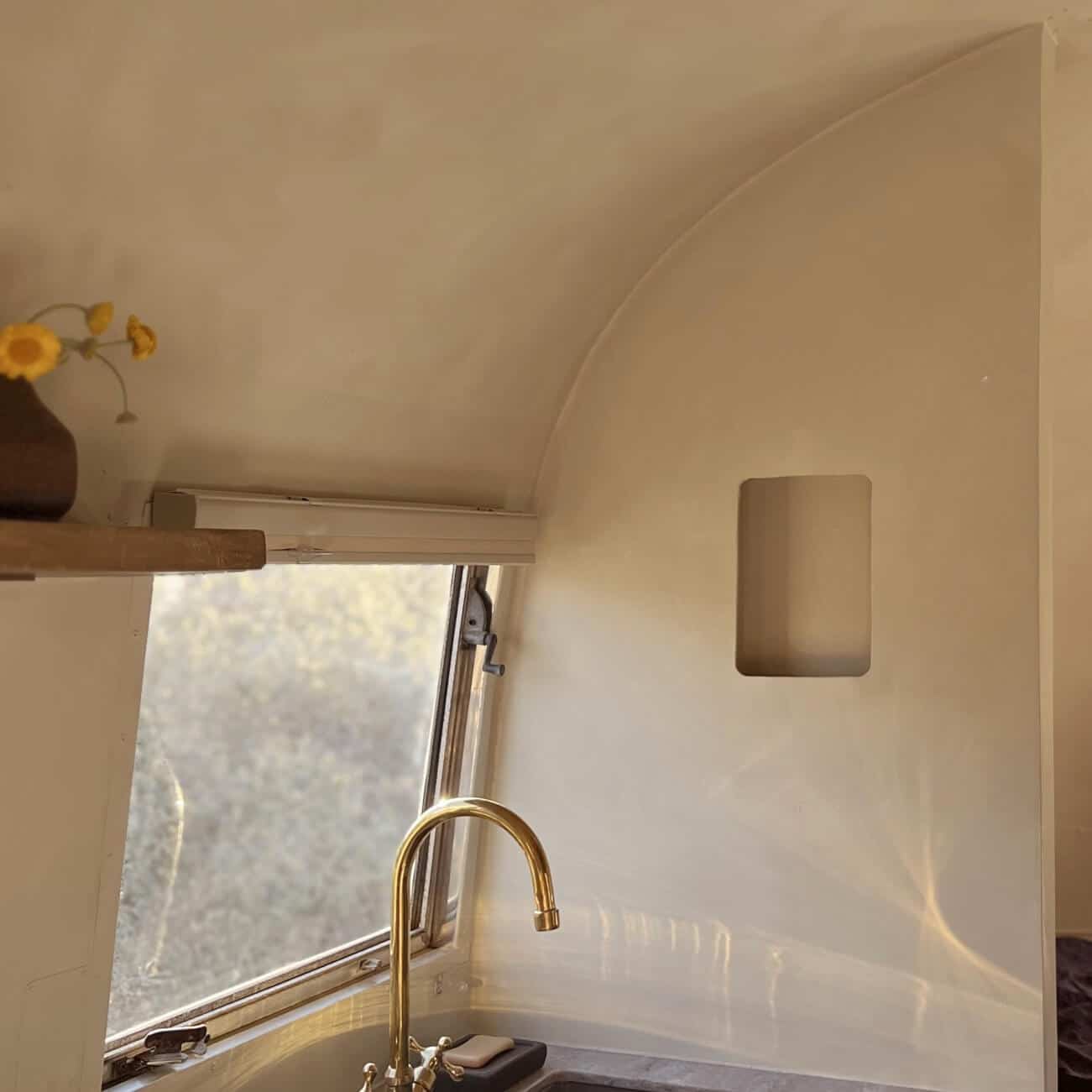

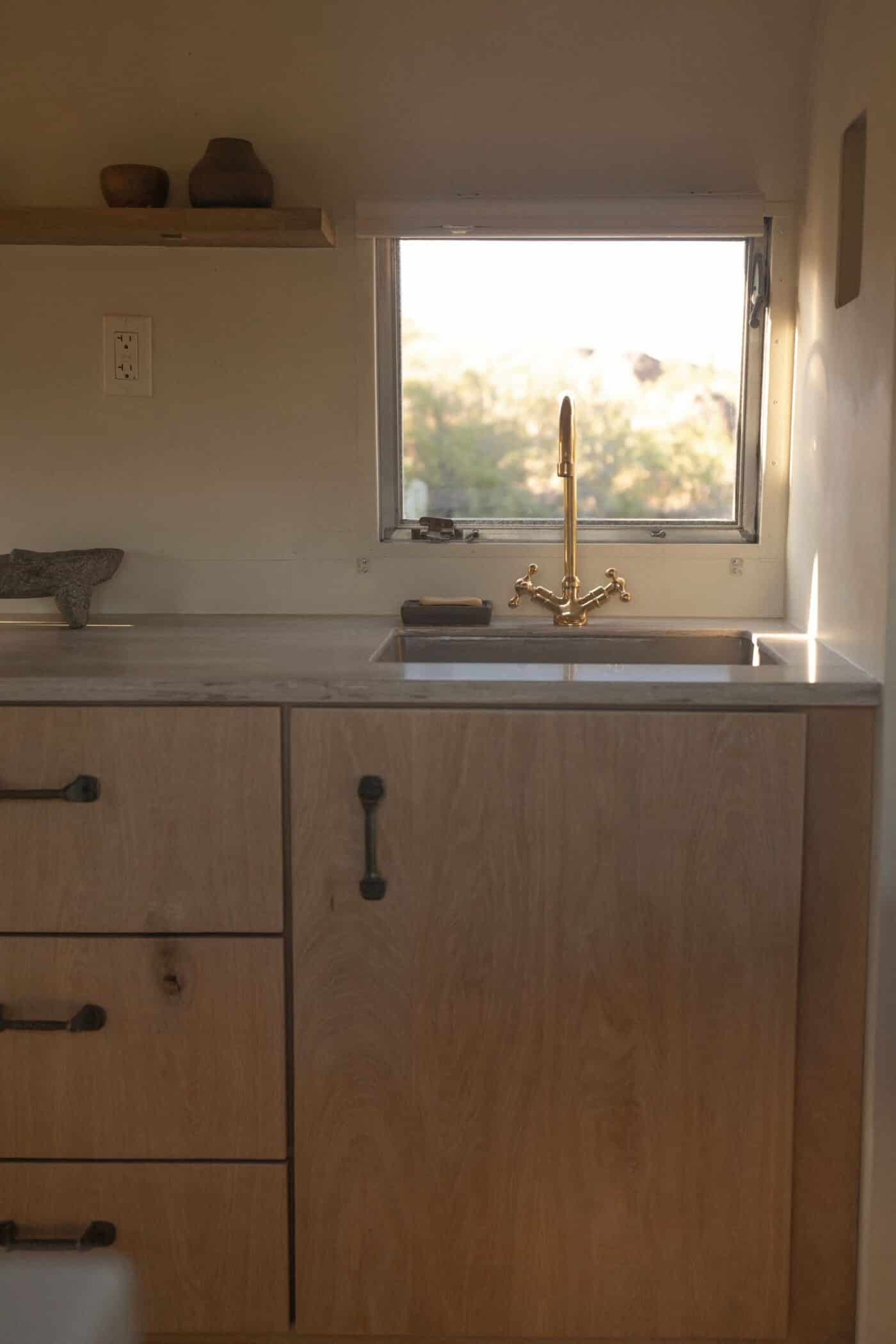

Only the best of the best for Sonora, with a Dometic CU-434 stainless steel gas range/oven, and a Vitrifrigo stainless steel high efficiency fridge/freezer. These along with the gorgeous solid surface counter top, quartz sink, luxurious genuine unlacquered brass faucet, and stunning Casual Elements table make the whole business of cooking & dining a delight. Oh let’s not forget to mention the dreamy old-world inspired solid white oak cabinetry with premium Baltic birch interior & boxes for maximum durability.

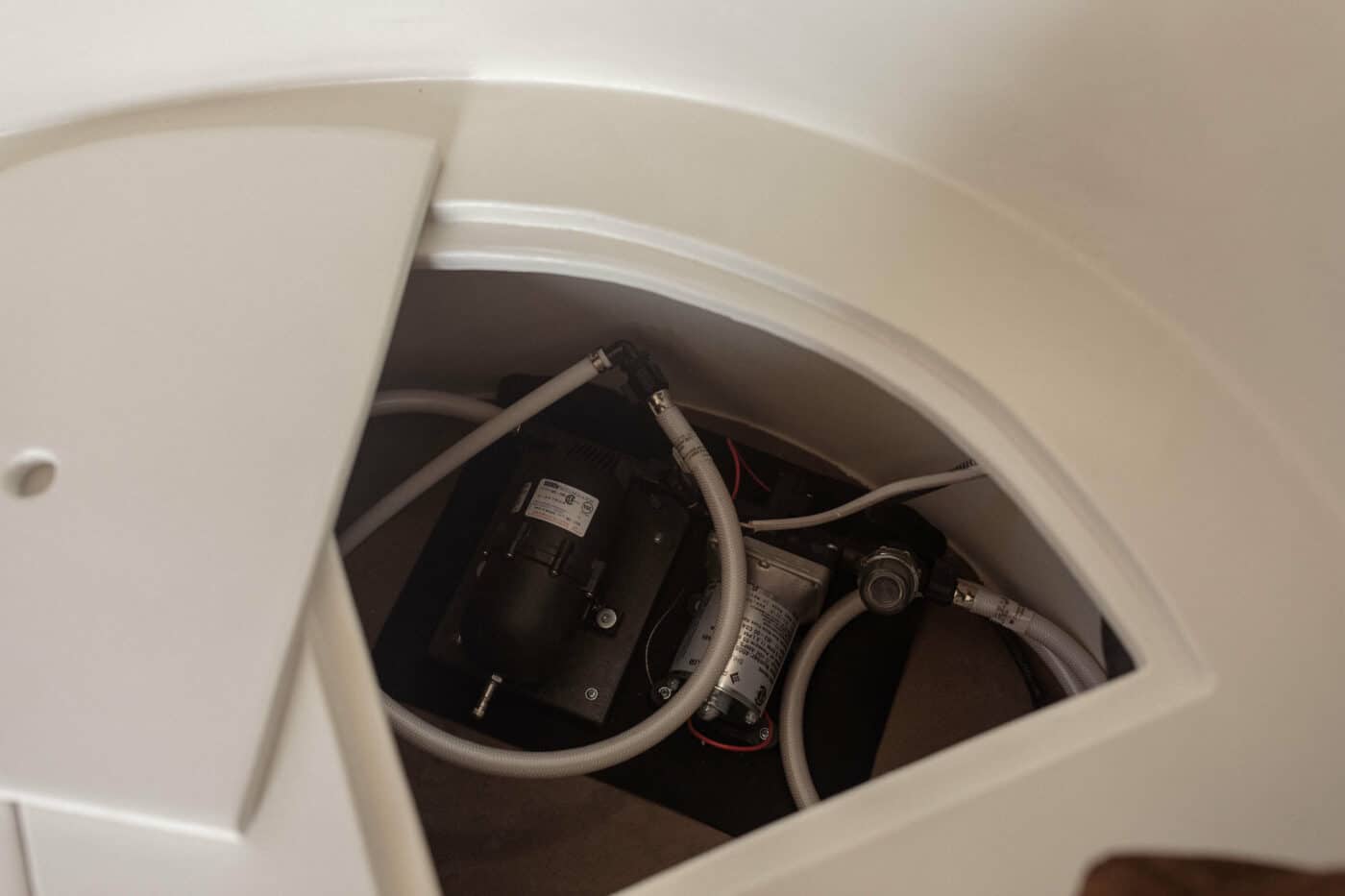

Water is supplied by connecting to shore or taken off grid by filling the 33 gallon insulated freshwater tank, from where its distributed with a Shurflo pump fitted with a Shurflo silencing kit & Shurflo accumulator, all housed within an easily accessible acoustically insulated compartment inside the couch. Pex plumbing all throughout. This Airstream is equipped with the Fogatti Instashower 8+ tankless water heater for instant hot water. This also saves space and maintenance. A luxurious brass shower system & quaint bathroom faucet and gorgeous stone sink, along with a Dometic RV toilet work to conserve water. The water system controls, including bypass valves, tank level monitor, tank heater and water pump switches are all conveniently located in a single kitchen cabinet.

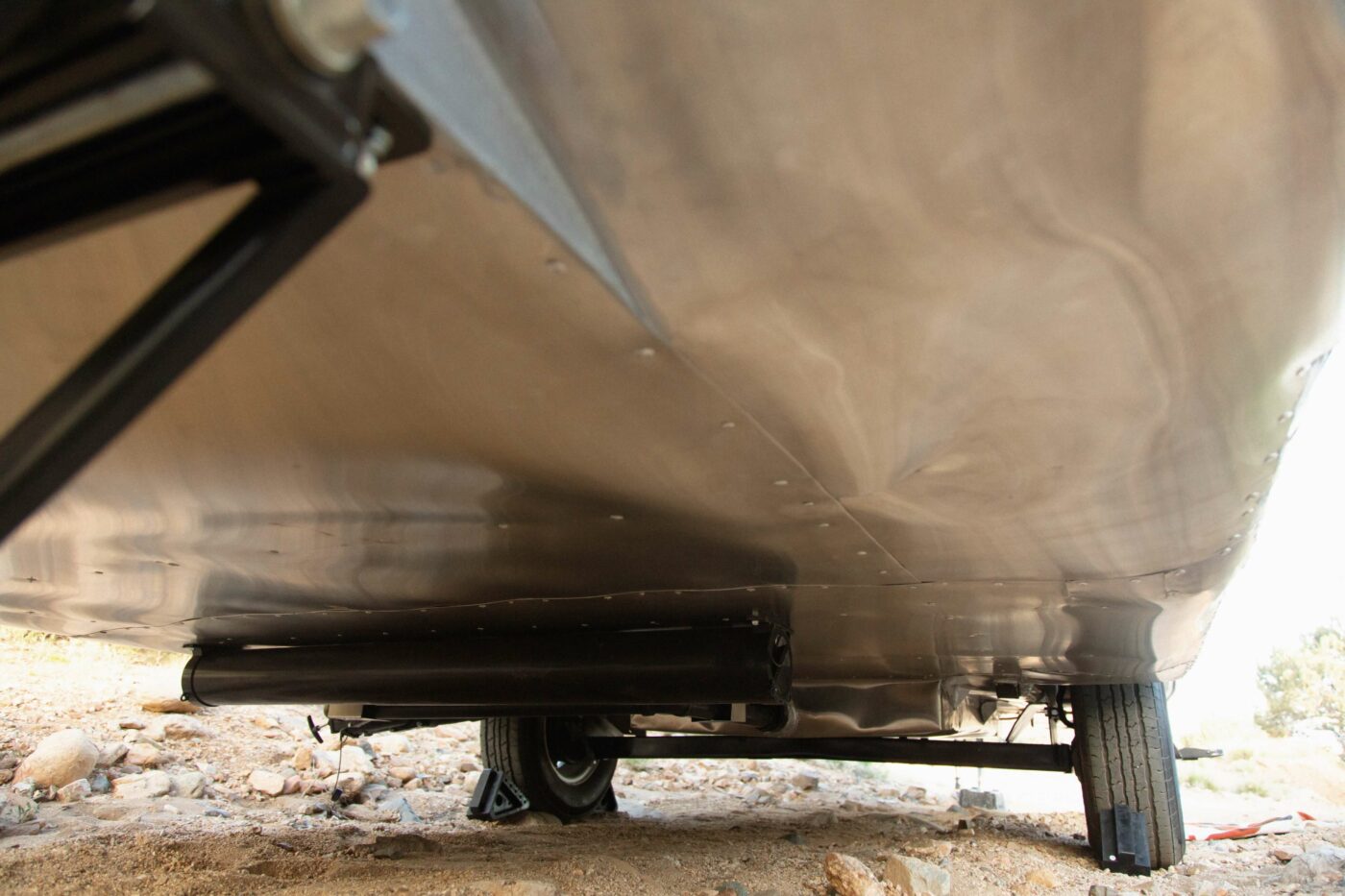

This Airstream was built with a 4 inch frame depth and ribs spaced 24 inches apart, not much room for waste water tanks! So we used the Airstream approach of an above floor black tank + low profile toilet combo, giving 10 gallons of black water storage. Then we installed a low profile Grey water tank under the belly pan, above the axle, giving us 35 gallons of gray water storage. This exterior tank is insulated and features a tank heater.

The three gray water drains each utilize waterless HepVo valves in lieu of P-traps for even more ease of maintenance.

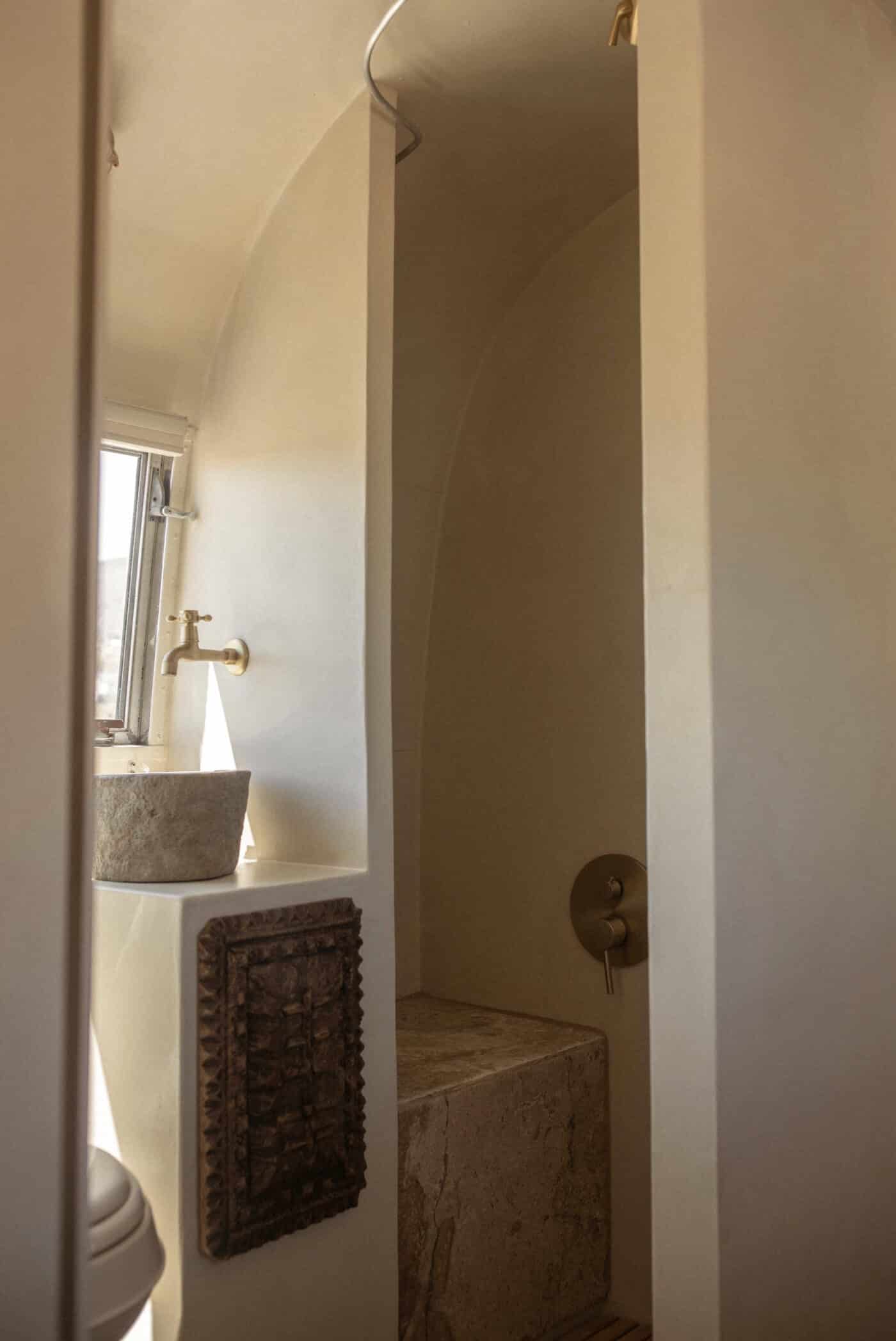

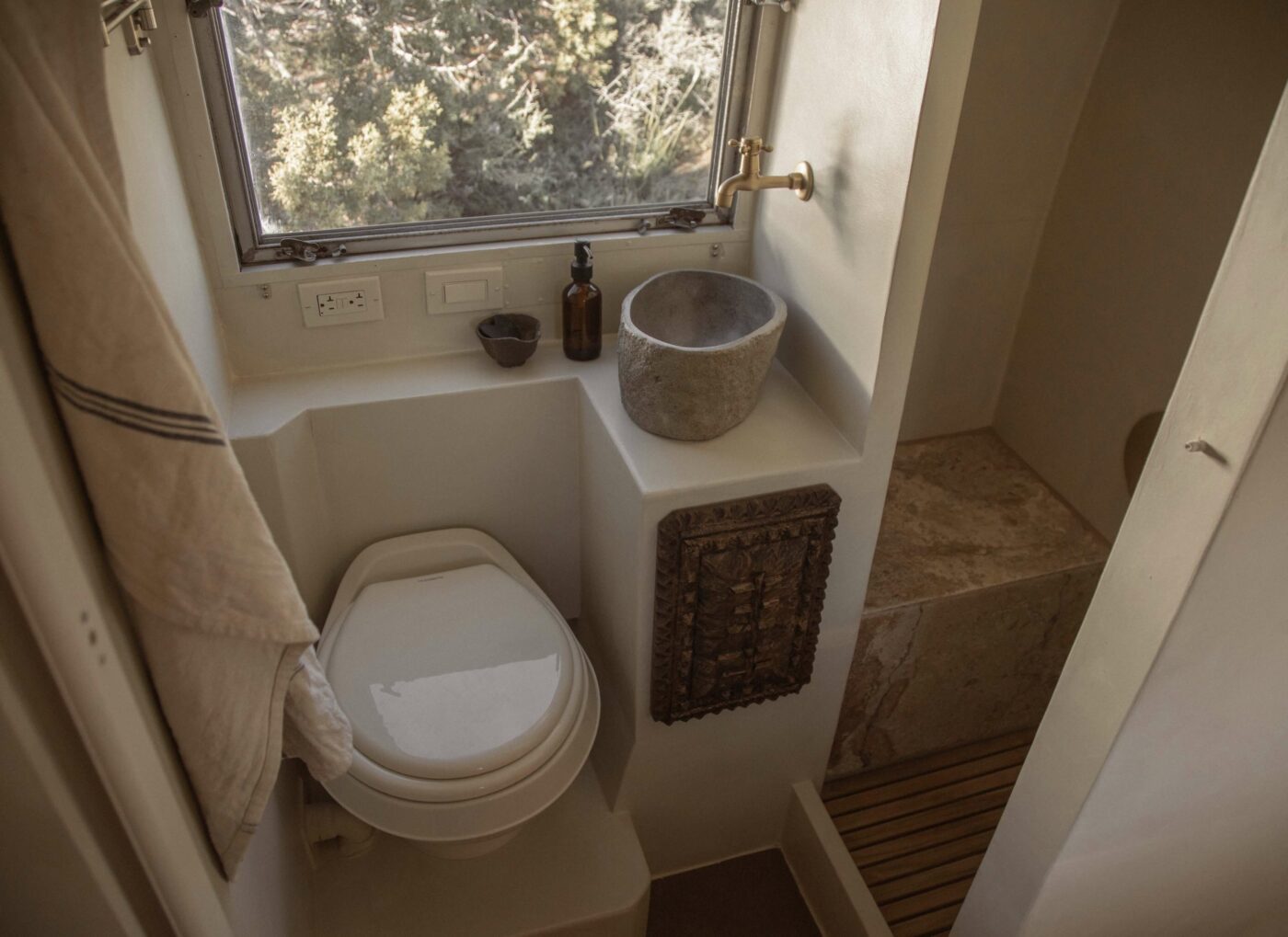

Our shower is constructed with fiber reinforced polymer panels & an acrylic molded shower pan for total waterproofing. Trimmed out with a stunning travertine bench & a luxurious teak shower mat, is this a yacht or an RV? The bathroom is fully waterproofed and features a pleated bathroom door that collapses completely into the wall saving space and weight.

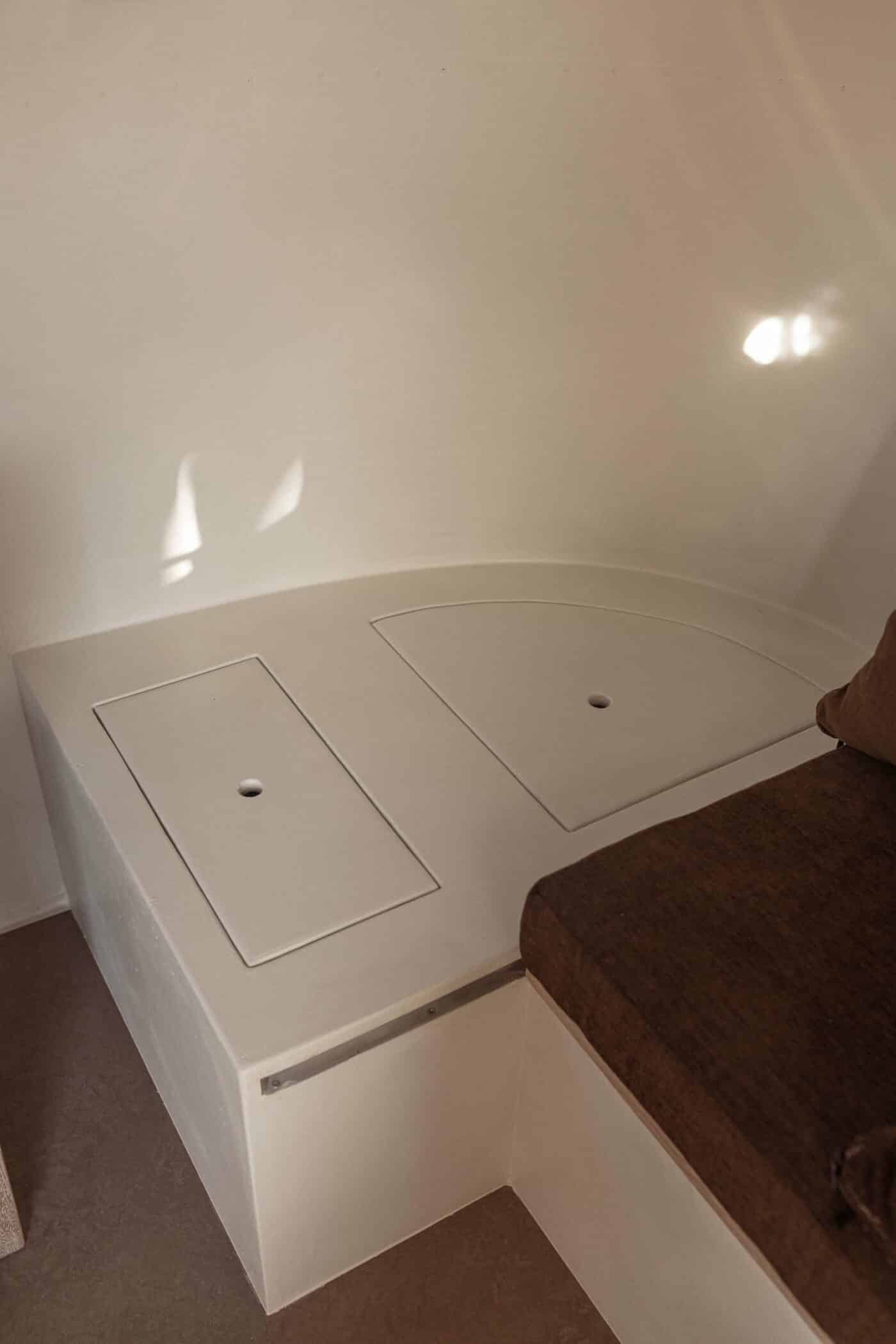

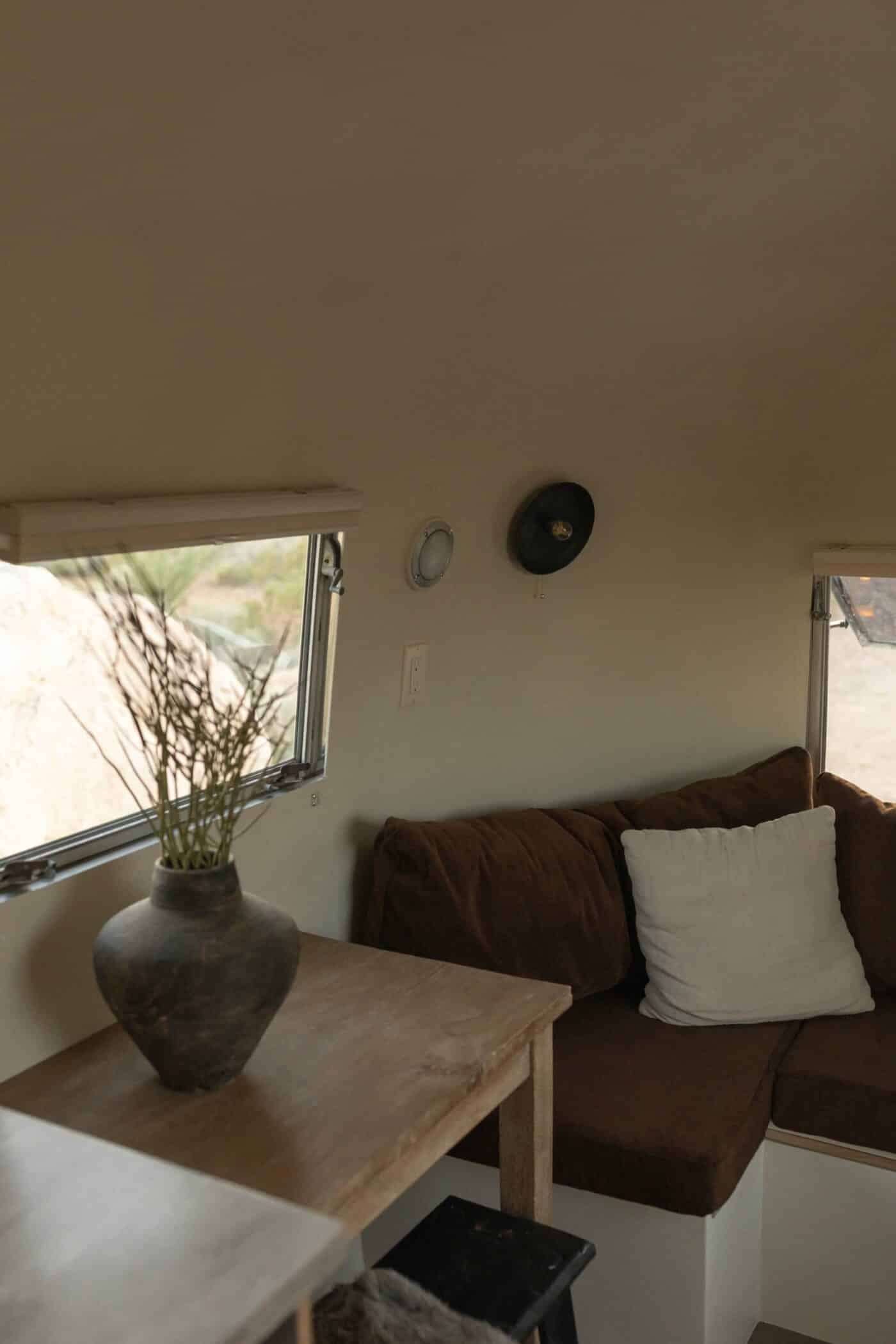

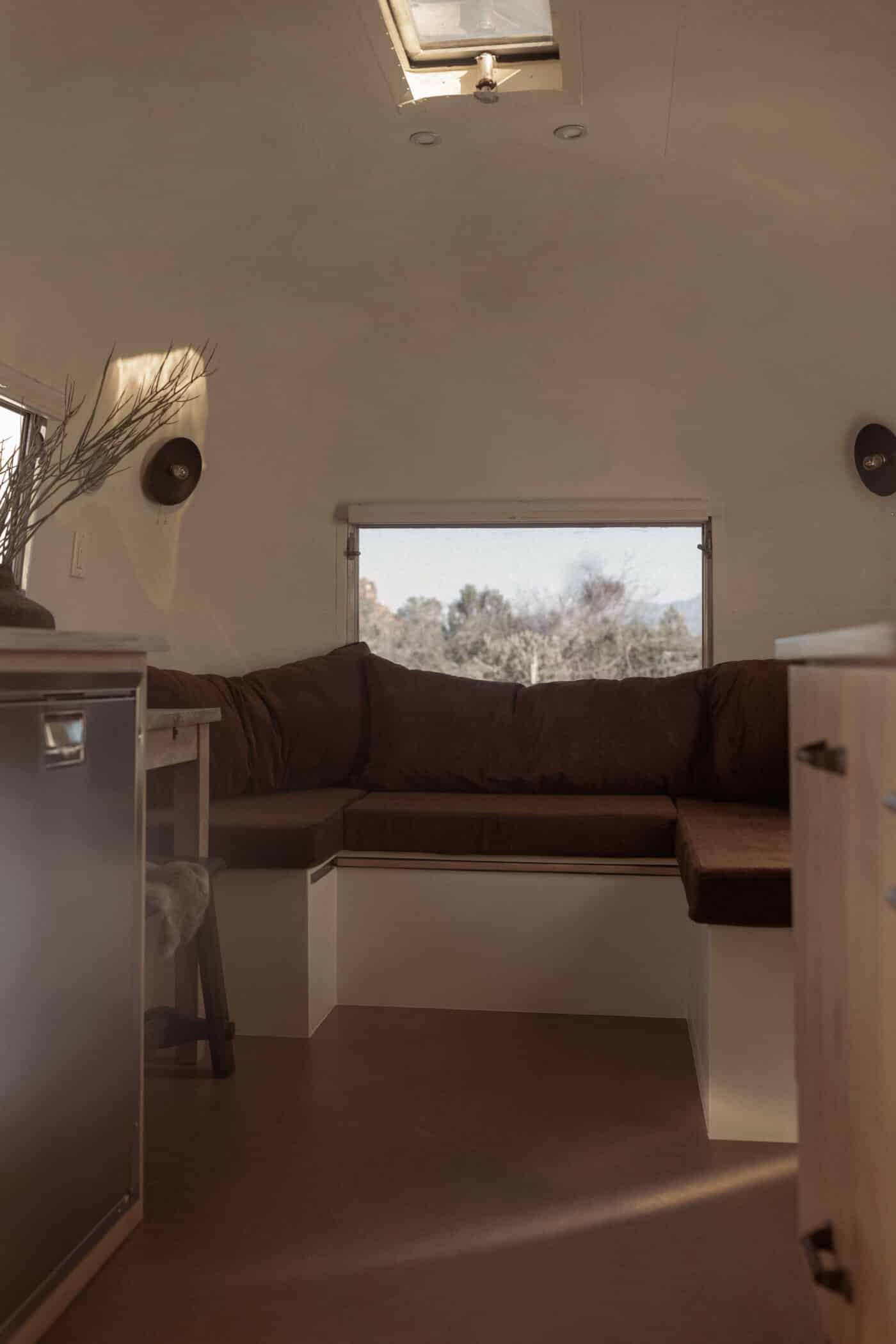

Back at the front of Sonora, we continue with the seamless yacht like design with our large wrap around couch. Made with all American materials, including Premium foam cushions and the fluffiest of pillows, our couch is upholstered in a durable yet luxurious velvet chenille. An integrated white oak slide out and provided cushion converts the couch into a comfortable guest bed, and there’s no wasted space with every inch inside being storage including a large drawer and three cubbies.

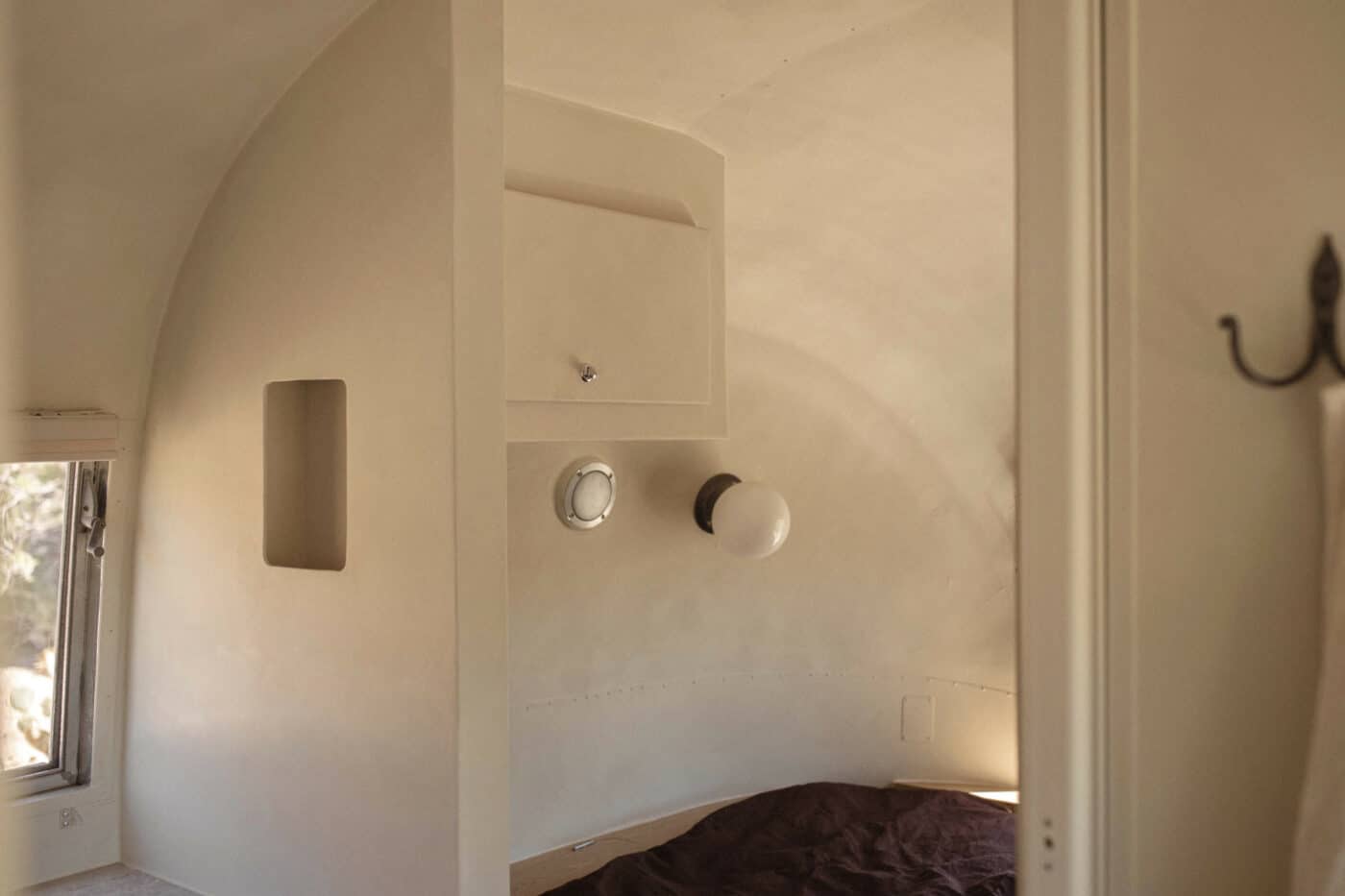

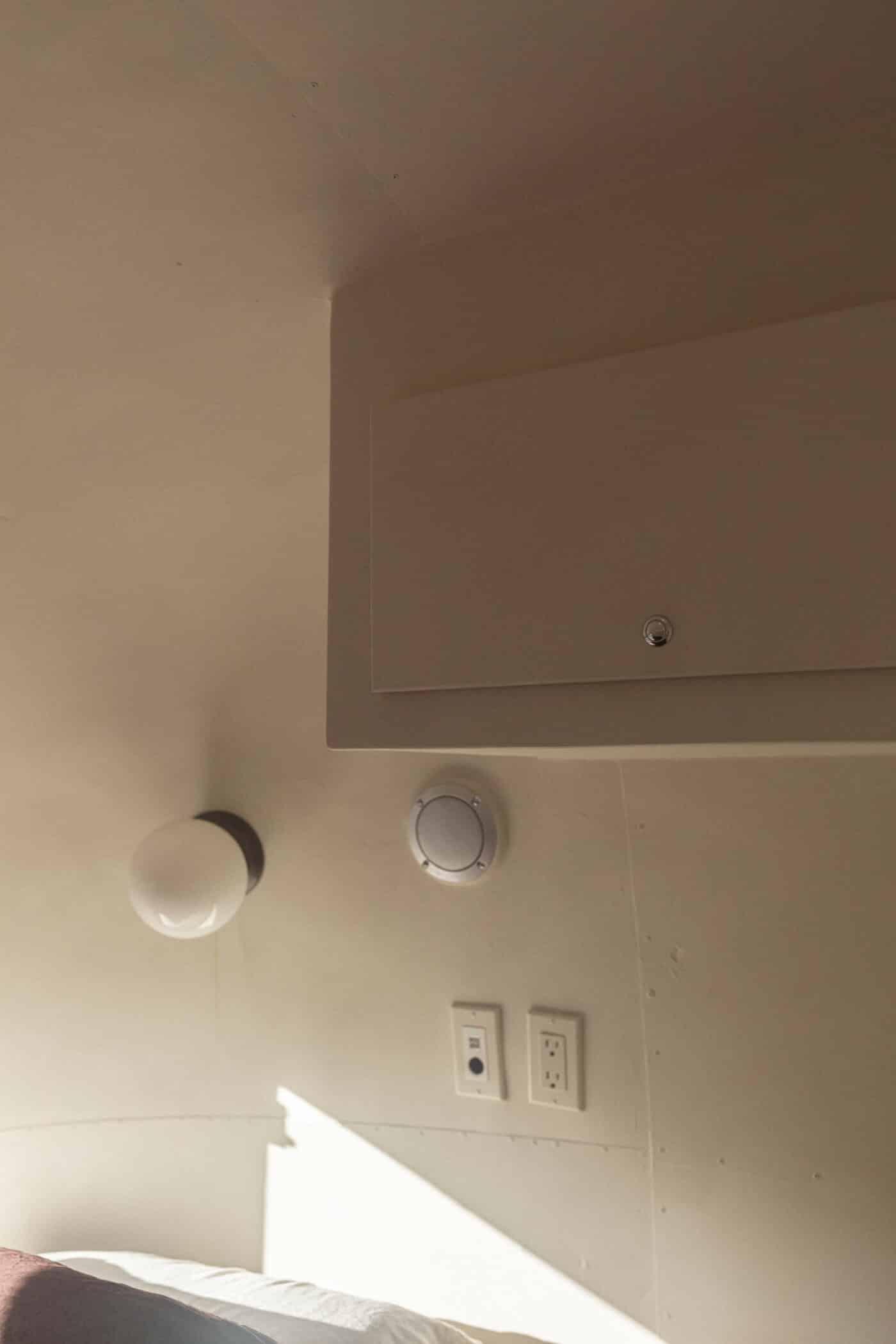

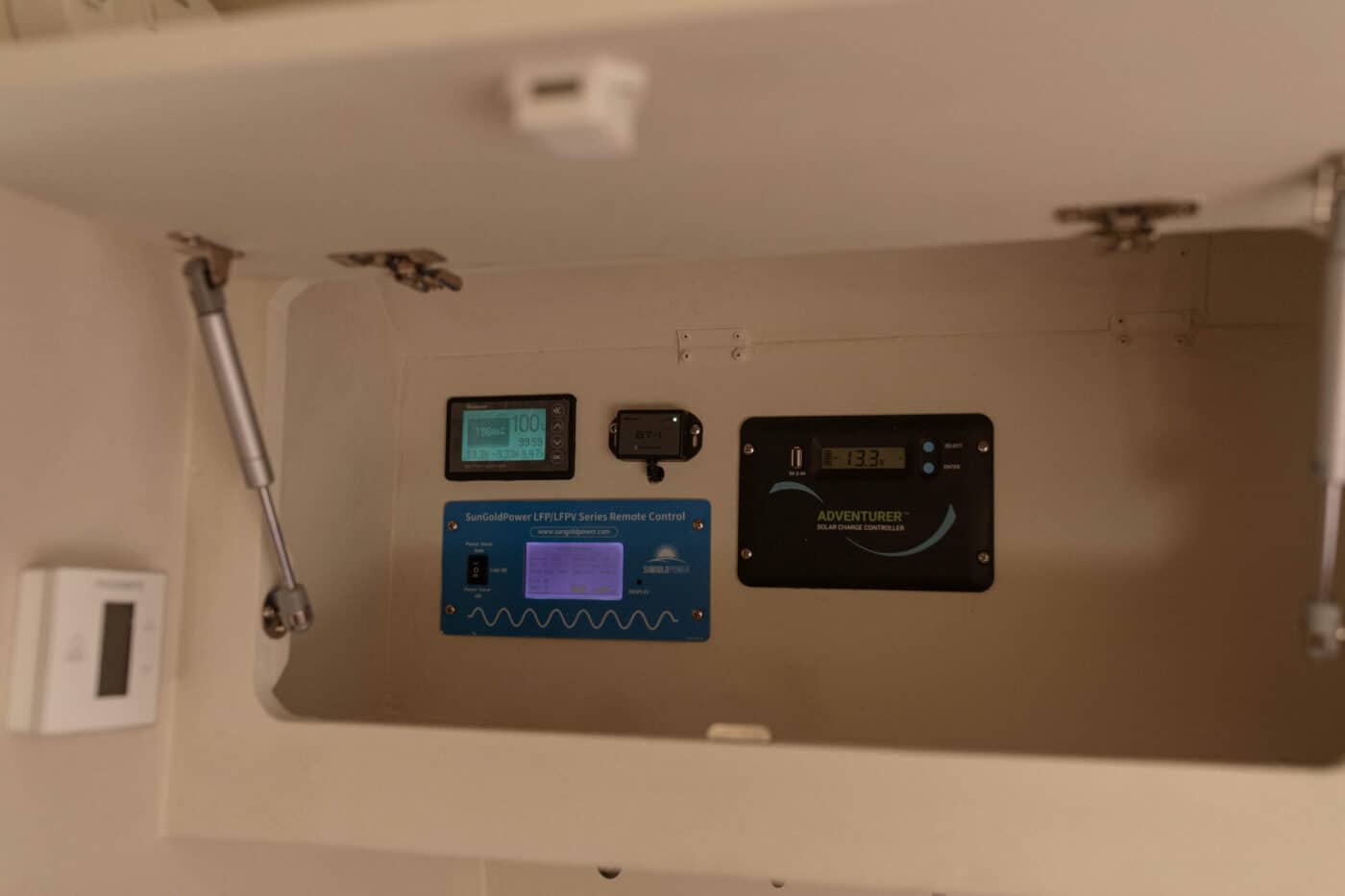

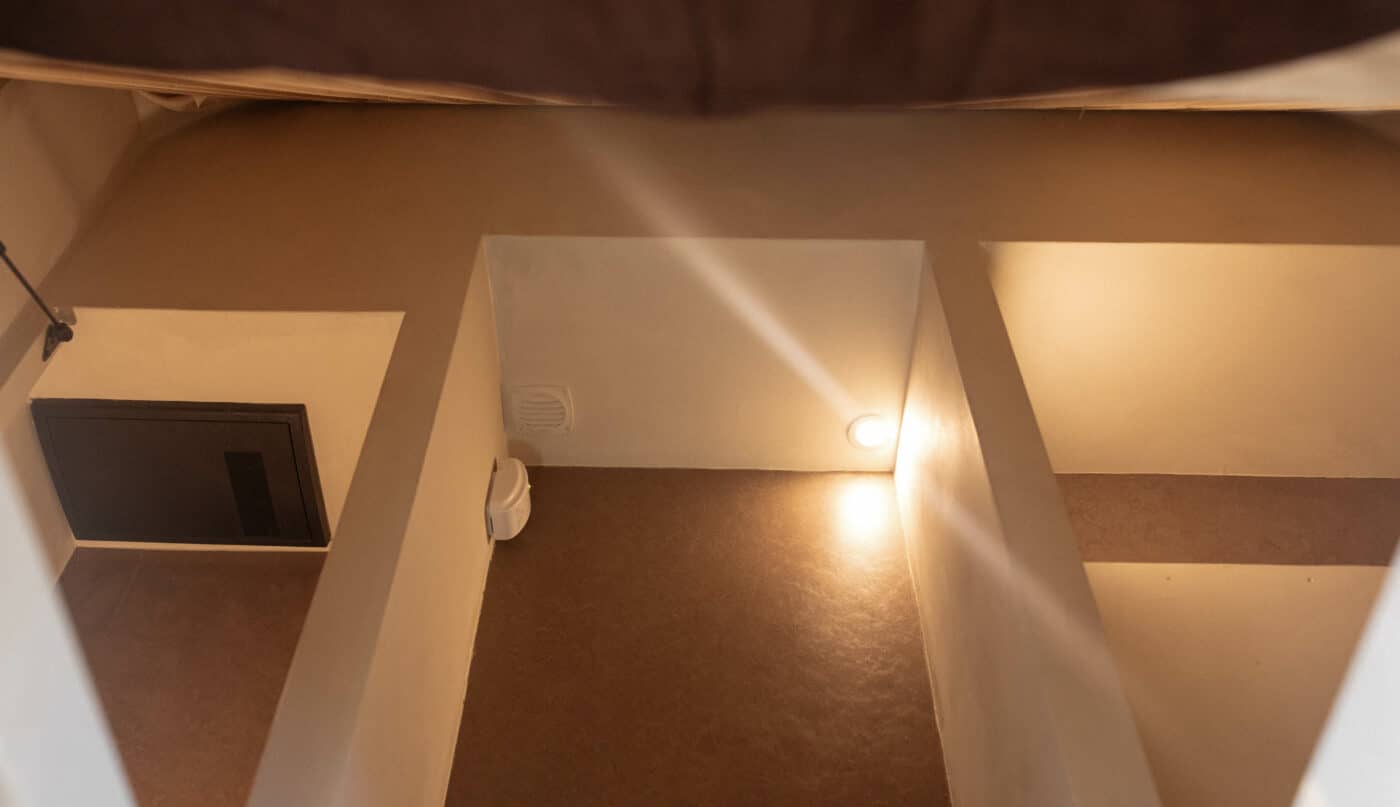

This storage focus continues Back to the rear of Sonora in the master bedroom. Our premium Brooklyn Bedding mattress with gorgeous linen bedding easily lifts to reveal lots of storage below. We also have overhead cubbies, one housing the Renogy Battery monitor, Renogy Adventurer Solar Charge Controller & Renogy bluetooth module, along with the SunGoldPower Inverter Charger Display.

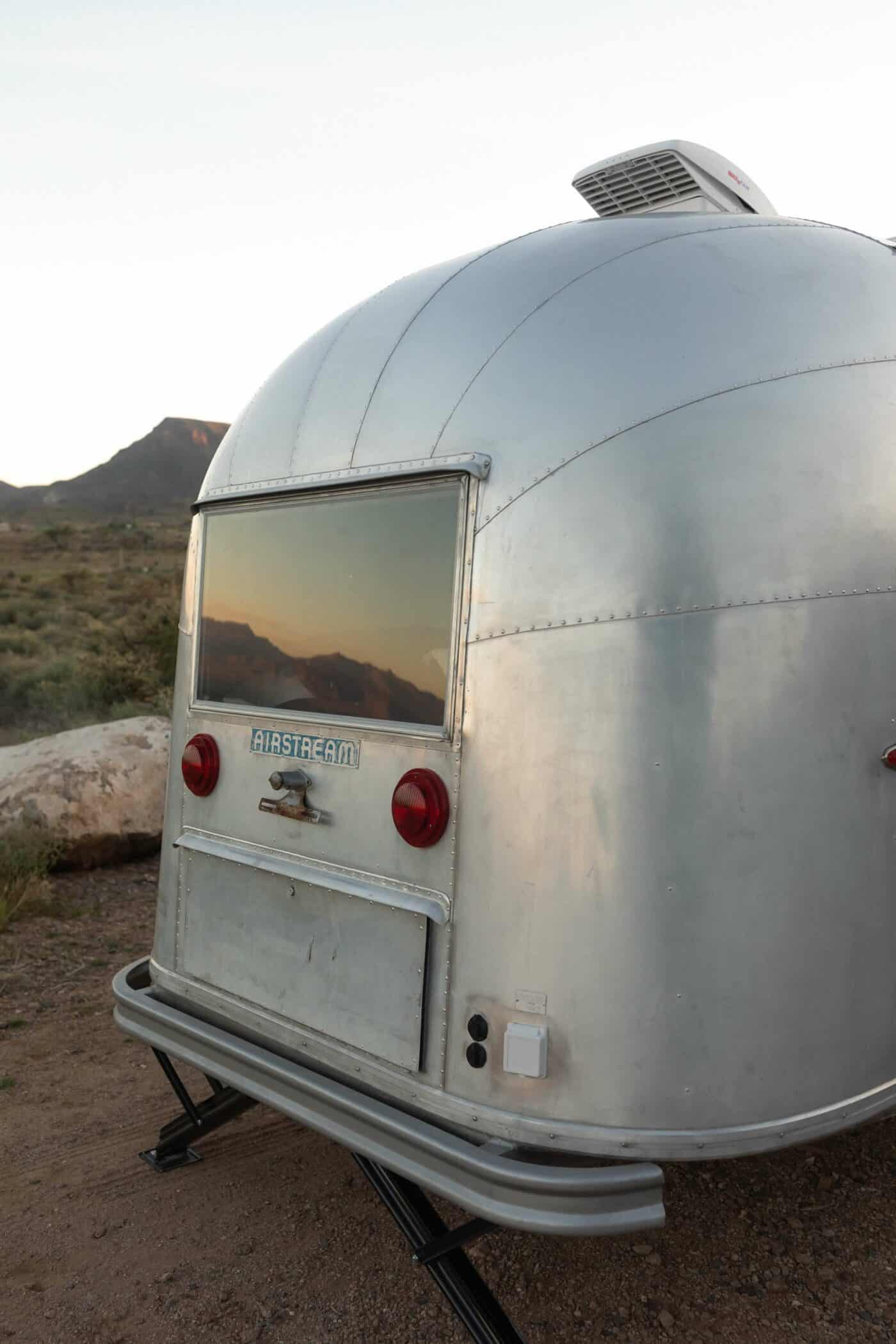

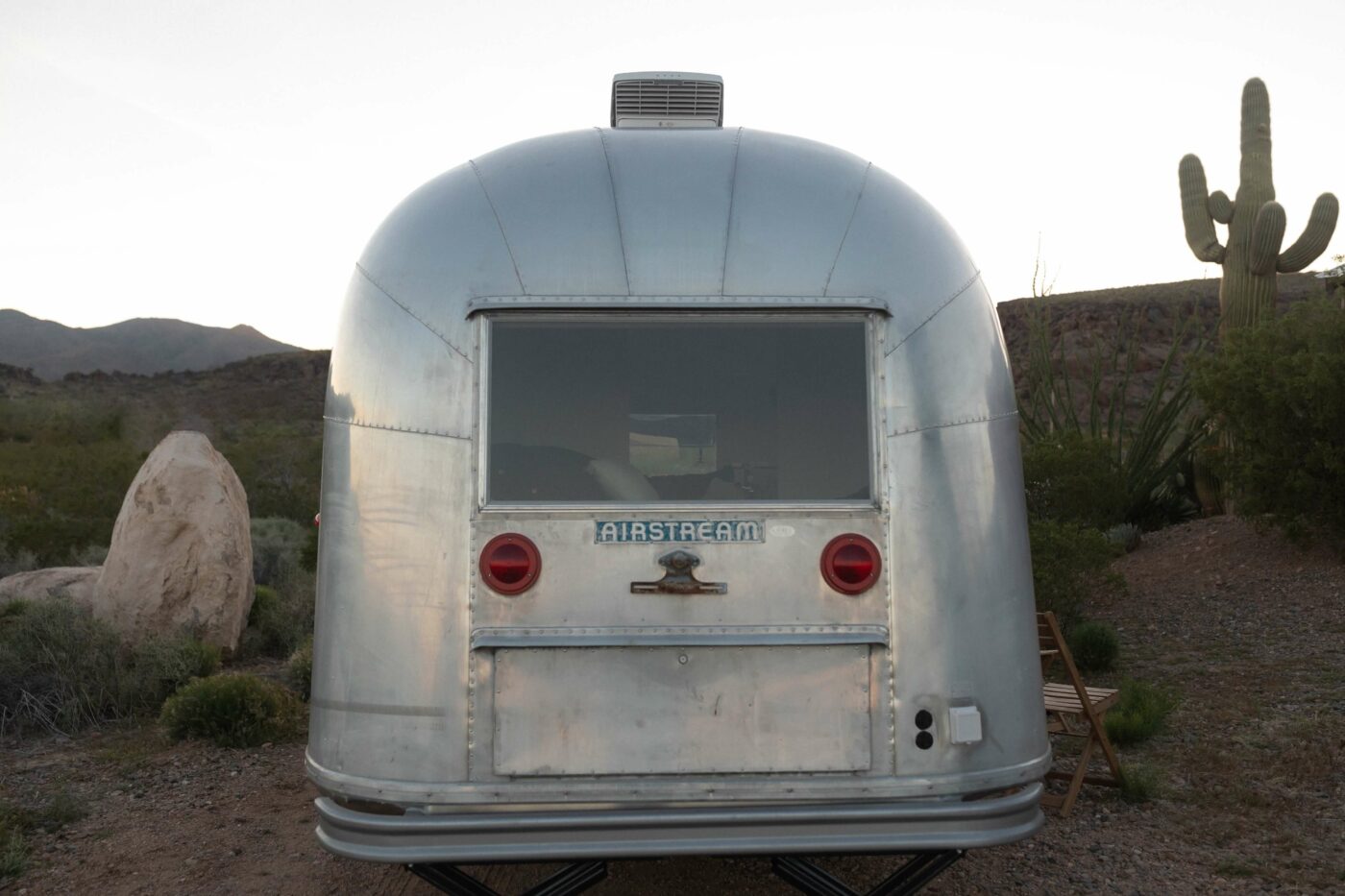

Outside we have sealed every seam and rivet, installed a new belly pan, new copper gas lines, gas tanks, and regulator. We also have new jacks at the rear and a new folding step. The door knob has been fully refurbished with new keys made, and the rear hatch received a new latch and keys as well. Sonora comes with all of the RV’ing basics; from 30amp power cord to wheel chocks to RV toilet paper, freshwater hose to sewer hose, you’re all set to camp on the way home!

63 years of vintage value paired with all your modern creature comforts!

Watch our full video tour: https://youtu.be/4HlvC4MyBuc?si=wqO5QfjqUoB0euMU
Follow us on Instagram! @patinaairstreams
patinaairstream.com

Full spec list:
1960 24ft Airstream Tradewind

– New Dexter/UHP single adjustable torsion axle
– Approx. 3,950 lbs dry and 450lbs tongue weight
– 30amp service
– 33 gallons fresh water, 10 gallons black water, 33 gallons gray water, 60 lbs lp gas
– 200ah smart lithium Renogy battery
– 200w Renogy Solar with Renogy charge controller with receptacles to easily add more panels
– 3000w SunGoldPower pure sine wave smart inverter charger with built in surge protection
– closed cell spray foam Tiger Foam insulation
– Foamular NGX subfloor insulation system
– New belly pan
– Dometic 15k btu Duo Therm A/C with heat pump
– Suburban low profile high efficiency gas furnace
– MaxxAir Deluxe fan
– Maxim Skylights solar dome
– Vitrifrigo stainless fridge / freezer
– Dometic stainless range / oven
– Convertible couch / bed
– Shurflo water pump, strainer, accumulator, and silencing kit
– Pex plumbing throughout
– Insulated freshwater and heated gray tank
– Level sensors on all tanks with monitor
– Fogatti Instashower 8+ gas tankless water heater
– Solid surface counter tops
– Quartz sink
– Solid brass faucet

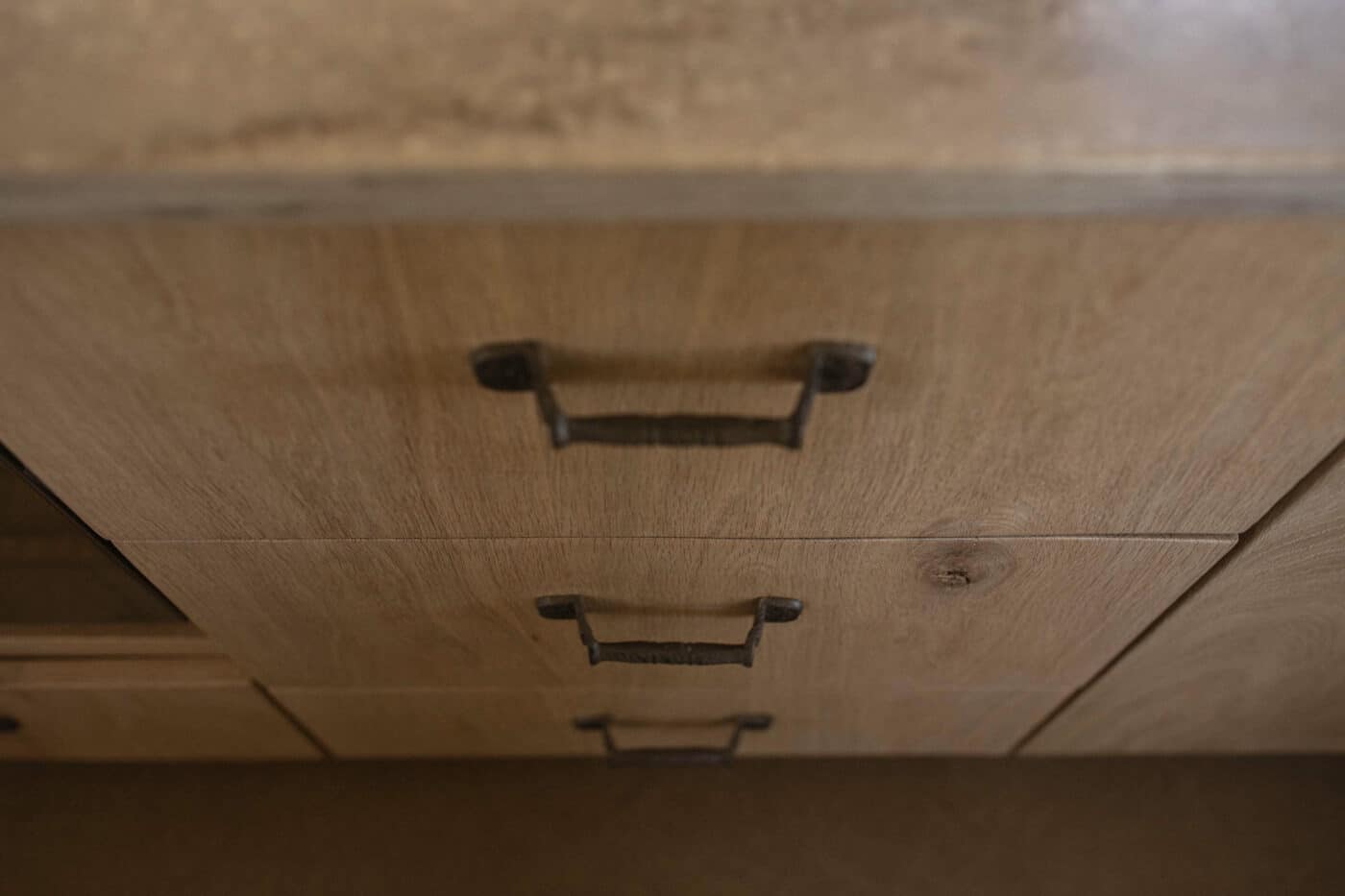

– Sealed Solid white oak cabinetry faces with painted Baltic birch boxes and drawer boxes, wrought iron pulls, and soft close slides
– Premium zippered couch upholstery with American materials
– Casual Elements table, with elm style bench
– Fiber reinforced polymer shower with acrylic molded shower pan, travertine bench & teak shower mat, Adjustable flow brass shower head
– HepvO waterless p-trap valves for each drain (3)

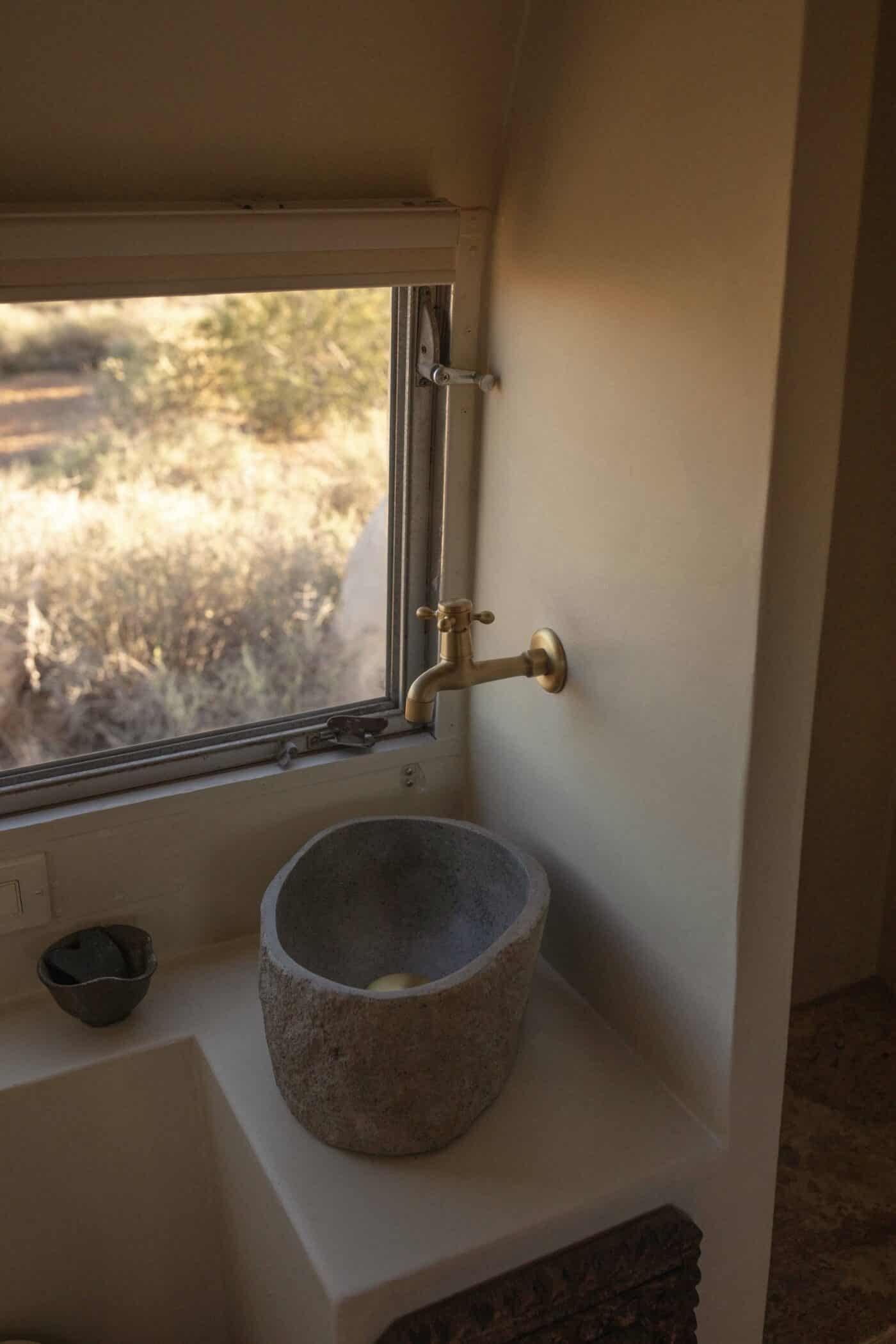

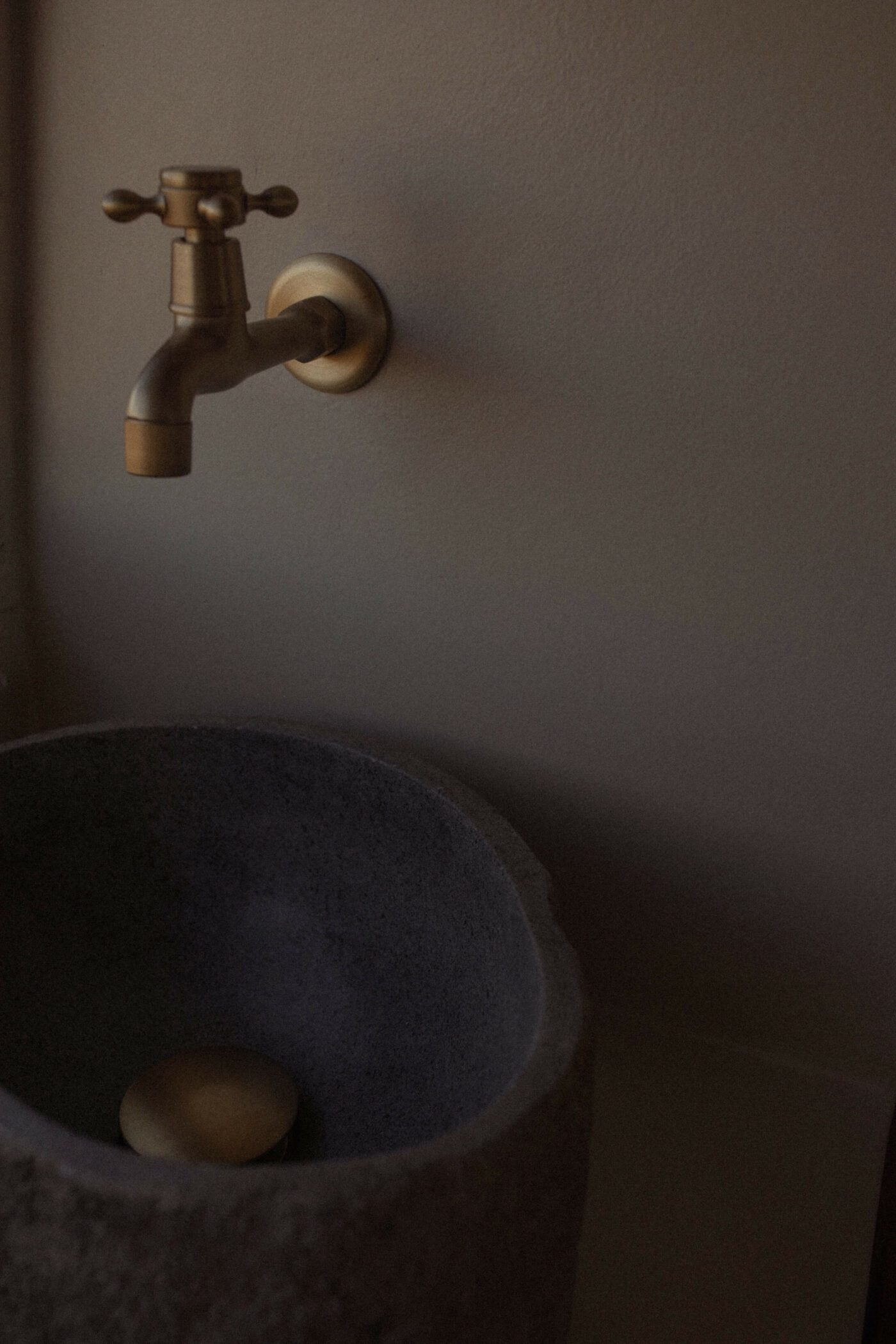

– Petite stone vessel bathroom sink
– Dometic low profile RV toilet
– 12v LED lighting throughout
– Two 12v receptacles to go with the 110 outlets
– New wiring throughout
– Full Alpine sound system with Bluetooth capability
– Brooklyn Bedding rv queen mattress with premium linen sheet set, duvet cover, duvet, and pillows included
– BAL jacks at rear of trailer
– Curt tongue Jack, comes with Curt sway bar & hitch along with Ox Block, leveling blocks, and wheel chocks
– New tow safety chains
– 2x 30lb Flame King lp gas tanks with new regulator and new copper gas lines + fittings
– Original wheels repainted
– New tires including full sized spare, Jack and lug wrench included
– New baby moon hub caps + original rusty caps go with it
– New tempered glass windows
– Insulating shades
– New polycarbonate rock guard
– New folding step
– New sealed subfloor
– Forbo Marmoleum sheet flooring
– Comes with new freshwater hose, filter, rv toilet paper, flooring conditioner, gasket conditioner, solar add on adapters, 30amp power cord, sewer hose and sewer stands
– Keys made for front door & new lock + keys and new lock for rear cargo hatch
– New gaskets everywhere
– 2x fire extinguishers on board, 2x smoke detectors, lp gas detector, & carbon monoxide detector
– New tail lights and new LED running lights
– Valterra wastewater valves
– Seams sealed inside and out
